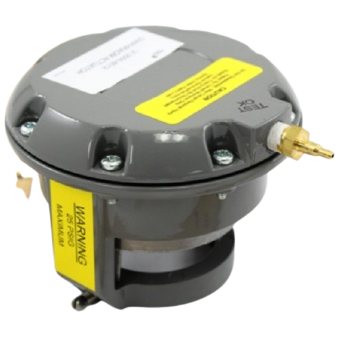

The V-3000-8012 and V-3000-8003 Pneumatic Valve
Actuators are designed to accurately position steam or
water valve modulating plugs in response to a
pneumatic signal from a controller. A V-9502 Valve
Positioner can be ordered separately for use with the
V-3000-8012 only, in applications where sequential
operation is desired or additional positioning power is
necessary. The actuators have a molded synthetic
rubber diaphragm design. This molded diaphragm
provides a constant effective area throughout the
actuator stroke. All parts are protected by a sturdy
die-cast aluminum housing.
