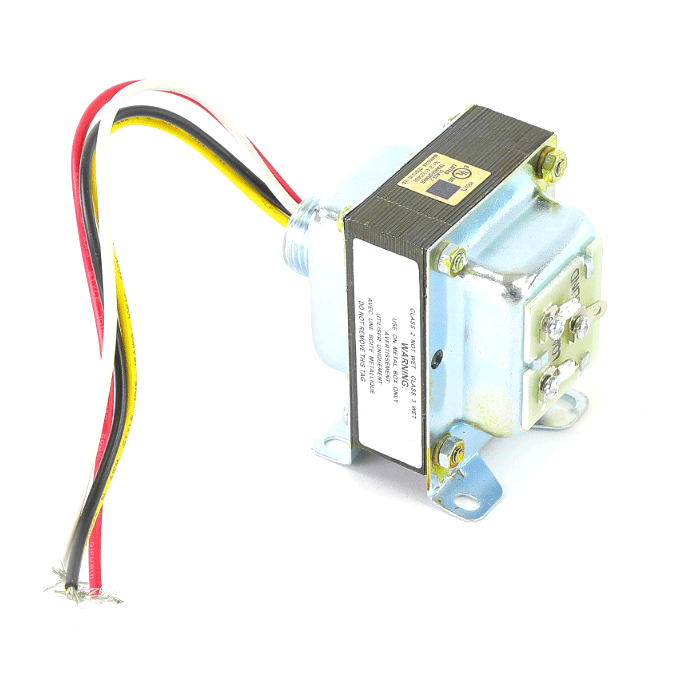

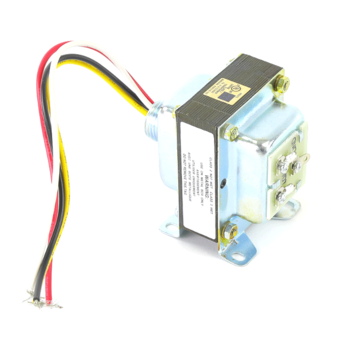

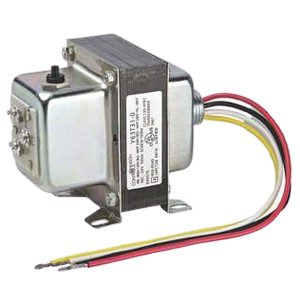

Johnson Controls Y65T31-0 Transformer 120/280/240V Primary 24V Secondary 40VA Capacity

Johnson Controls Y65T31-0 Transformer 120/280/240V Primary 24V Secondary 40VA Capacity
Images for general purposes only. Actual may be different than depicted.
Johnson Controls Y65T31-0 Transformer 120/280/240V Primary 24V Secondary 40VA Capacity Johnson Controls Y65T31-0 Transformer 120/280/240V Primary 24V Secondary 40VA Capacity

Johnson Controls Y65T31-0 Transformer 120/280/240V Primary 24V Secondary 40VA Capacity

SKU: Y65T31-0
Rating:
Quantity Price Stock
2
Usually Ships 1-2 Weeks
$73.75     /ea
2
Add to Cart
Add to Wishlist
Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
Y65T31-0
The Y65 Series transformers handle 24 VAC power requirements from 40 VA through 300 VA. These transformers are designed for use with digital controllers, gas controls, ignition systems, motor actuators, staging controls, and most other 24 VAC Heating, Ventilating, Air Conditioning (HVAC) and Refrigeration control systems. The Series meets the national requirements of the United States and Canada and are UL listed as Class 2 transformers (UL 1585, CSA C22.2 No. 66).


Features:

  • Split Bobbin Design - Provides best primary/secondary isolation
  • Multi-Tap Primaries - Reduces stocking requirements and offers application flexibility
  • Choice of Foot, Plate, or Conduit Hub Mounting - Provides mounting flexibility
  • Choice of Primary Voltages - Meets a wide range of power requirements from 24 VAC through 480 VAC
  • Color-Coded Lead Wires - Provides simplicity and standardization
  • cULus Listed or cURus Recognized - Meets US and Canadian requirements for Class 2 transformers (Y63, Y64, Y65, and Y66) and general purpose transformers (Y69)
  • Built-In, Easy-Reset Circuit Breakers - Avoids replacement time and cost caused by burnout (Y63, Y64, Y66, and Y69)
  • Open Frame Y65 Models - Are ideal when endbells are not required
Transformer: Class 2
Termination: Wire Leads
Mounting Foot or Plate Mount
Fittings Male
Overload Protection Energy Limiting
Lead 8" Primary Leads
