| H-SERIES SPLIT TAPER BUSHING | ||
| SKU | Bore Size | Keyseat |
| 60331501 | 1 1/8" | 1/4" x 1/8" |
| 60331502 | 1 3/16" | 1/4" x 1/8" |
| 60331503 | 1 3/8" | 5/16" x 5/32" |
| 60331504 | 1/2" | 1/8" x 1/16" |
| 60331505 | 5/8" | 3/16" x 3/32" |
| 60331506 | 3/4" | 3/16" x 3/32" |
| 60331507 | 7/8" | 3/16" x 3/32" |
| 60331508 | 1" | 1/4" x 1/8" |
| 60331509 | 1 1/4" | 1/4" x 1/8" |

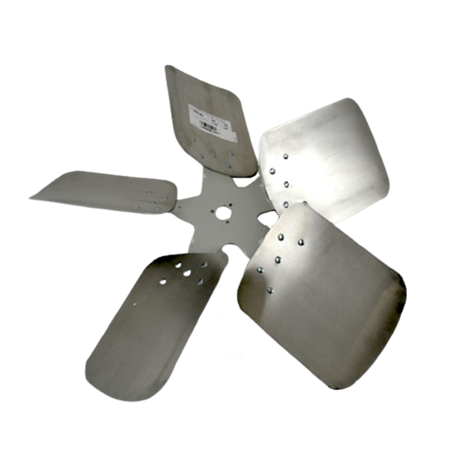

| Lau 60561901 Fan Propeller Performance | ||||||||||
| RPM | STATIC PRESSURE | |||||||||
| 0" WC | .1" WC | .2" WC | .3" WC | .4" WC | ||||||
| CFM | HP | CFM | HP | CFM | HP | CFM | HP | CFM | HP | |
| 825 | 5791 | .387 | 5409 | .420 | 4789 | .443 | 2875 | .451 | 1919 | .501 |
| 1075 | 7555 | .838 | 7258 | .875 | 6922 | .914 | 6509 | .952 | 5892 | .980 |
| 1140 | 7956 | .984 | 7708 | 1.035 | 7418 | 1.084 | 7070 | 1.126 | 6604 | 1.157 |
| 1625 | 11179 | 2.750 | 11006 | 2.882 | 10825 | 2.894 | 10634 | 2.965 | 10431 | 3.035 |
| Number of Blade | 5 |
|---|---|
| Diameter | 24" |
| Pitch Angle | 33-degree |
| Rotation | Clockwise |
| Material | Aluminum |
