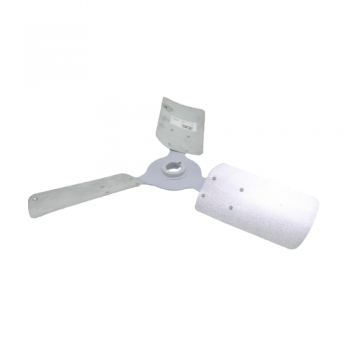

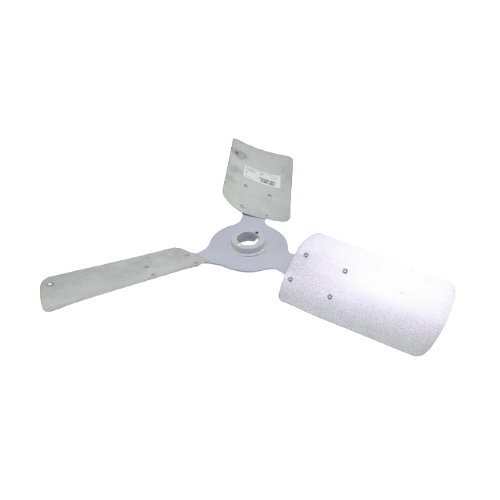

Lau 61093601 Fan Blade with a diameter of 30". The fan is heavy-duty made of steel coated with galvalume for metal protection from oxidation. The propeller has a 22-Degree Pitch and clockwise rotation at a maximum speed of 1140 RPM. The hub is interchangeable.
The Lau 61093601 is suitable for industrial circulators, condensing units, cooling towers & agricultural ventilation applications.

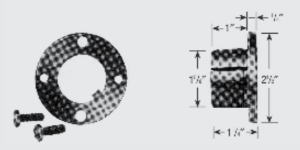

H-Style Hubs for 30" Propeller:
| BORE SIZE | MODEL NUMBER |
| 1/2" | 60331504 |
| 5/8" | 60331505 |
| 3/4" | 60331506 |
| 7/8" | 60331507 |
| 1" | 60331508 |
| 1 1/8" | 60331501 |
| 1 3/16" | 60331502 |
| 1 1/4" | 60331509 |
| 1 3/8" | 60331503 |
| Rotation | Clockwise |
|---|---|
| Pitch | 22 degree |
| Diameter | 30" |
| No. of Blade | 3 |
| Material | Steel |
| Maximum Speed | 1140 RPM |
Download Product Information:
By Jose
from Cliffside Park NJ
Yes, I would recommend this product to a friend or co-worker
Received timely. Direct replacement for 25 year old parts at a discount of 30% off of the price that it was available from at local supplier.
