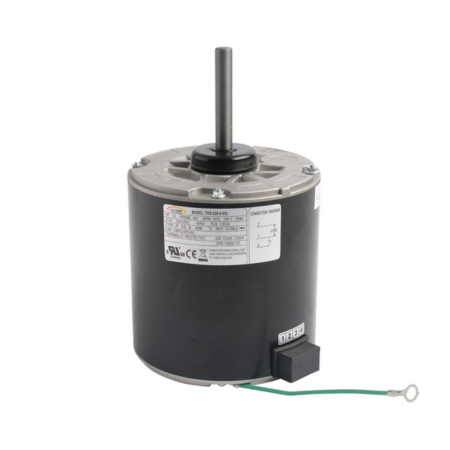

Lennox 14Y65 Condenser Fan Motor 1-Phase 1/3 HP 208-230V 1075 RPM CCWLE

Lennox 14Y65 Condenser Fan Motor 1-Phase 1/3 HP 208-230V 1075 RPM CCWLE
Images for general purposes only. Actual may be different than depicted.
Lennox 14Y65 Condenser Fan Motor 1-Phase 1/3 HP 208-230V 1075 RPM CCWLE

Lennox 14Y65 Condenser Fan Motor 1-Phase 1/3 HP 208-230V 1075 RPM CCWLE

SKU: 14Y65
UNSPSC: 26101400
Rating:
Quantity Price Stock
66
Usually Ships 2 - 4 Weeks
$161.94     /ea
66
0
$0.00
0
$0.00
0
14Y65
The Lennox 14Y65 is a single-phase condenser fan motor rated at 1/3 HP and designed to operate on 208-230V, 60 Hz power.  CE Marked and UL Recognized, ensuring safety compliance.

This motor features a 1/2" x 3.4" shaft, rotating at 1075 RPM in a counterclockwise lead end (CCWLE) direction with single-speed operation.

It includes a permanent split capacitor (PSC) design, 48-frame size, ball bearings for extended durability, and a belly band mounting for secure vertical installation.

The 14Y65 is a direct replacement for the 104607-01 condenser fan motor, and is compatible with the following Lennox rooftop unit model series:

CHA
CHP
EL
GCS
HP
HS
KCA
KCB
KCC
KDB
KGA
KGB
KGC
KHA
KHB
KHC
LCA
LCB
LCC
LCE
LCH
LCM
LCT
LCX
LDT
LGA
LGB
LGC
LGE
LGH
LGM
LGT
LGX
LHA
LHT
LSA
PED
SCA
SCB
SCC
SCH
SGA
SGB
SGC
SGH
TCA
TGA
THA
TPA
TSA
ZCA
ZCB
ZCC
ZGA
ZGB
ZGC
Mounting Position Vertical
Motor Speed 1-Speed
Capacitor Value 10 MFD 370 VAC
Amperage 1.65A
Number of Phase Single-Phase
Electrical Ratings 1/3 HP, 208-230V, 60 Hz
Approvals CE and UL
Shaft Size 1/2" x 3.4"
Rotation Speed 1075 RPM
Rotation Direction CCWLE
