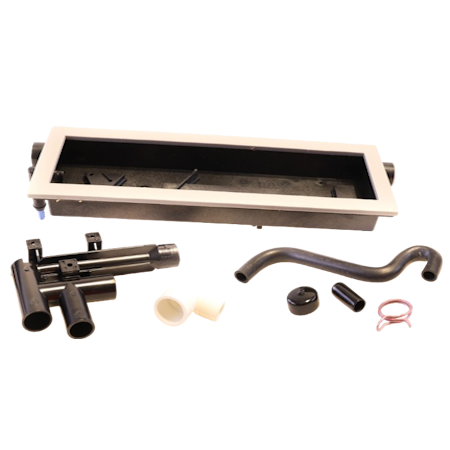

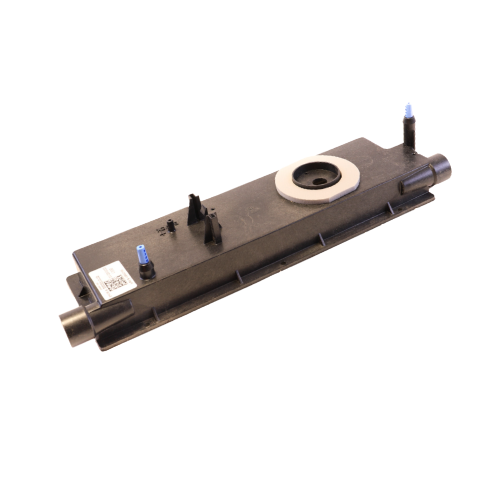

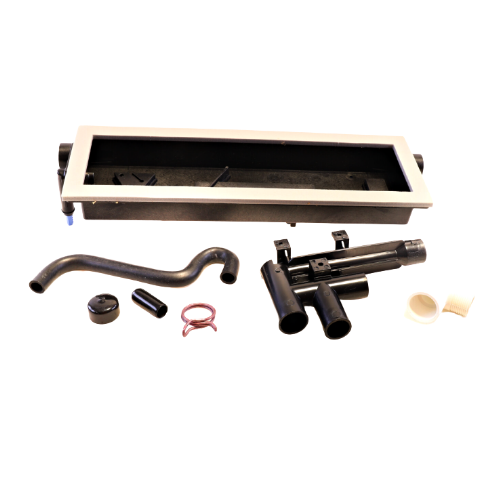

The Lennox 17F38 collector box is an OEM replacement component designed for the EL296 Series high-efficiency furnaces. This collector box plays a crucial role in managing condensate and directing airflow within the furnace system. It ensures proper drainage of condensate produced during the combustion process, thereby maintaining the efficiency and longevity of the furnace.
Constructed from durable materials, the 17F38 Collector Box is engineered to withstand the demanding conditions within HVAC systems. Its design facilitates easy installation and integration into existing systems, making it a reliable choice for maintenance and repair tasks. The component's compatibility with the EL296 Series ensures that it meets the specific requirements of these high-efficiency furnaces.
The 17F38 replaces the following part numbers:
| Application | Furnace |
|---|
By Greg
from Kanata ON
Yes, I would recommend this product to a friend or co-worker
My good pressure switch detected a pressure problem in my Lennox furnace. The collector box was the problem. No obvious crack, and not likely leaking for either box gaskets. But there must be a crack somewhere in the old part, or a blockage in the 'pressure tunnels' inside the old box. Because swapping in the new part solved the problem and changed my sensed pressure differential from 0.63 to 0.85 ( inches water column), which allowed my pressure switch to close, and my furnace startup to proceed to the hot surface igniter activation. (My pressure switch closes at 0.65 inches h2o.) Thank-you so much Industrial Stores! Well packaged product AND arrived ahead of schedule! ) Greg from Ottawa< Canada
