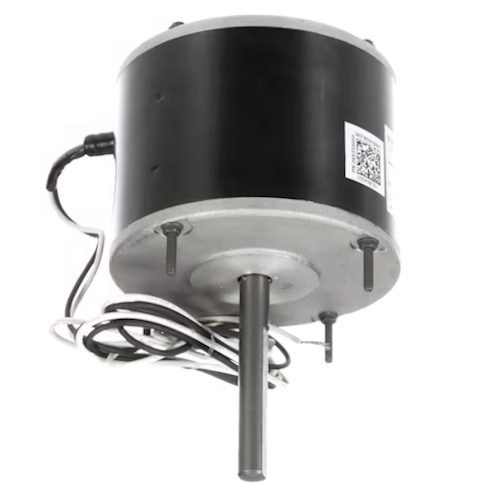

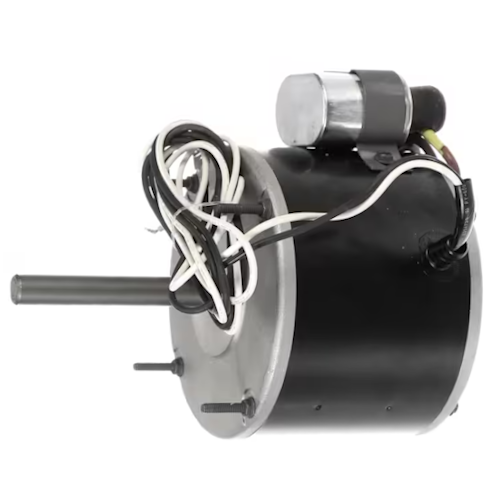

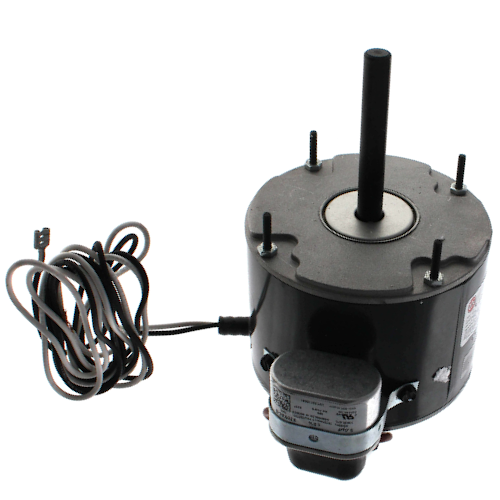

The Lennox 96M54 Fan Motor is a genuine OEM replacement motor designed for Lennox HVAC equipment. This motor is rated at 1/8 HP and operates on 115V, 1 phase, 60 Hz power with a 1075 RPM motor speed. It features sleeve bearings, CCWLE rotation, horizontal stud mounting, and a 1/2 x 3.38 in shaft.
Built for HVAC service applications, the 96M54 supports reliable air movement and system operation when replacing a worn or failed motor. The unit also includes a 5 MFD 370 VAC capacitor.
| Voltage | 115V |
|---|---|
| Horsepower | 1/8 HP |
| Frequency | 60 Hz |
| Amperage | 2.1 A |
| Rotation Speed | 1075 RPM |
| Rotation | Counterclockwise Lead End |
| Bearing Type | Sleeve |
| Capacitor Value | 5 MFD 370 VAC |
| Shaft Size | 1/2 x 3.38" |
| Approvals | CSA-certified |
