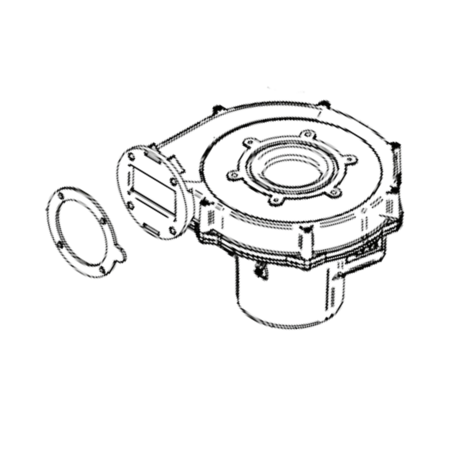

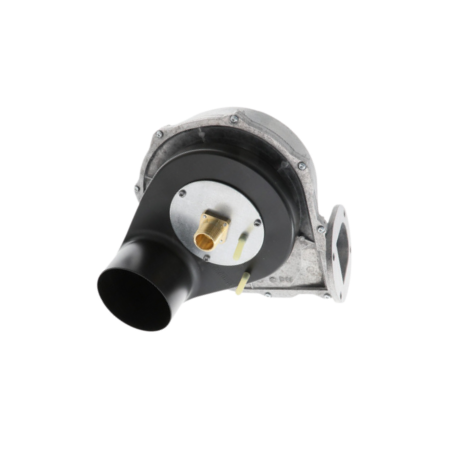

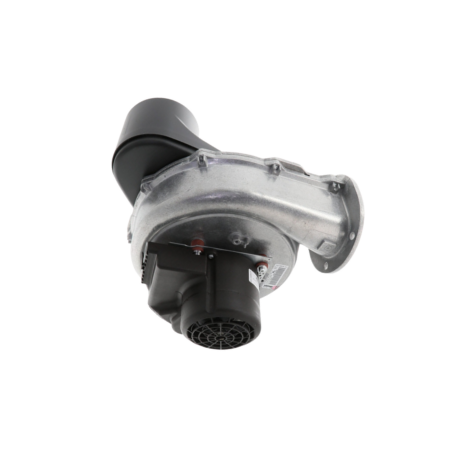

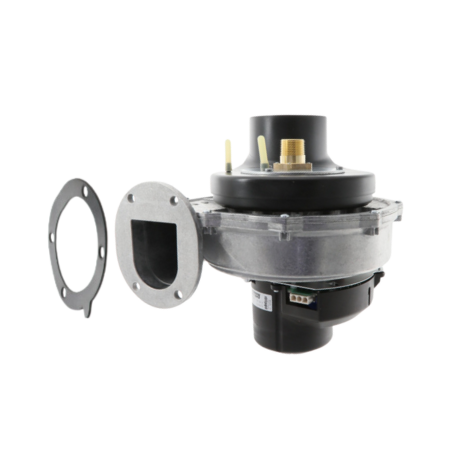

The Lochinvar 100145009 is a combustion fan assembly designed to operate at 120V and 50-60Hz. It consists of a housing, motor, and gasket. UL-recognized, ensuring compliance with safety standards.
This assembly plays a critical role in managing airflow within heating systems. By directing air through the combustion chamber, it supports efficient fuel combustion, optimizing system performance.
The 100145009 serves as a direct replacement for the FAN3037 fan assembly. It is compatible with the following Armor, Knight, Shield, and Sync condensing water heater and boiler models:
| AW500 AWH0400NPM OKL501 SNA500 KBN500 XP501 |
AW501 AWH0500NPM OKN501 KB500 KBN501 XP502 XPN501 |
AWN500 AWN501PM SBN/L1000 KB501 XP402 XP802 |
| Applications | Heating Systems |
|---|---|
| Product Type | Assembly |
| Frequency | 50-60 Hz |
| Voltage | 120V |
| Approval | UL-Recognized |
