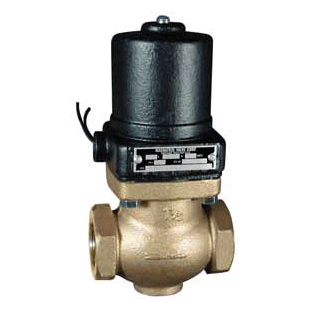

Magnatrol Bronze Solenoid Valve (Type S - Full Port - Normally Closed)

The Magnatrol 44S19 valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger. Upon de-energizing the coil, a spring closes the pilot valve and opens a bleed passageway to permit pressure to build above the piston and seat it. To control the flow of steam, the steam must be free of sediment. Valve operates from zero to maximum differential pressure indicated in table. Valve must be mounted in horizontal pipe with solenoid enclosure vertical and on top.

Valve Construction Consists of:

• Valve Body - Cast Bronze, Globe Pattern - NPT ends
• Piston - Bronze
• Coil Enclosure - Malleable or Cast Iron, 1/2� NPS conduit conn.
• Plunger - 430 Stainless Steel
• Pilot Valve - 303 Stainless Steel
• Bonnet Tube - 304 Stainless Steel
• Spring - Inconel
• Body Seal - Non Asbestos Gasket
• Orifice Seal - Glass Filled Tefl on
• AC Shading Coil - Copper
• Stem Pin - Inconel
• Coil - Encapsulated Class H, 18� leads
