Magnatrol Solenoid Valves G18A45SC-ACBW Normally Closed 1.25"NPT 0/90# 120V 212F LIQ

Name: Magnatrol Solenoid Valves G18A45SC-ACBW Normally Closed 1.25"NPT 0/90# 120V 212F LIQ
Brand: Magnatrol
SKU: G18A45SC-ACBW
Price: 570.81 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

Images for general purposes only. Actual may be different than depicted.

Magnatrol Solenoid Valves G18A45SC-ACBW Normally Closed 1.25"NPT 0/90# 120V 212F LIQ

SKU: G18A45SC-ACBW

Brand:

Rating: (3)

Quantity	Price	Stock
Usually Ships 2 - 3 Weeks Usually Ships 2 - 3 Weeks	$570.81 /ea	Usually Ships 2 - 3 Weeks

Add to Cart

Add to Wishlist

The G18A45SC-ACBW found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Magnatrol 18A45 Solenoid Valves [1.25"npt 0/90psi Normally Closed 120V]	18A45 Brand Magnatrol
Magnatrol Solenoid Valves 18A45-W 1.25Npt 0/90# Normally Closed 120V Valve	18A45-W Brand Magnatrol

Add to Cart

Add to Wishlist

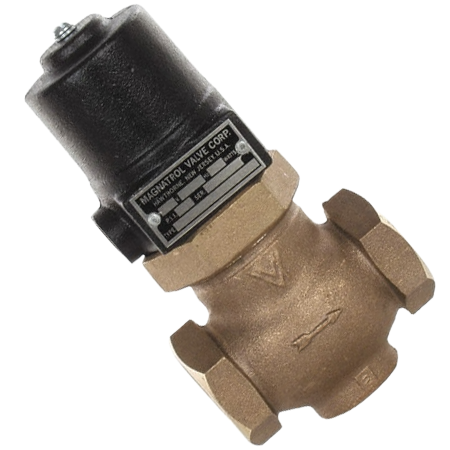

The G18A45SC-ACBW is a normally closed solenoid valve with a 1-1/4"NPT port size. It operates at 120V, 60 Hz frequency, 212°F maximum fluid temperature, 90 psi maximum working pressure, and up to 300 psi static pressure.

The solenoid valve regulates the flow of liquids by energizing the solenoid to open and close the valve. The unit features a cast bronze valve body and malleable iron that protects it from damage while providing excellent performance.

Applicable to the following medium:

Water
Fuel Oil
Air
Gas
Solvents
Brine
Vacuum

The G18A45SC-ACBW is easy to install and mount to a horizontal pipeline. The GASKET-5-STD standard gasket 1.25" is also available.

Voltage	120V
Frequency	60 Hz
Maximum Fluid Temperature	212°F
Maximum Working Pressure	90 psi
Maximum Static Pressure	300 psi
Port Size	1-1/4" NPT
Valve Type	Two-Way
Fluid Types	Water, Fuel Oil, Air, Gas, Solvents, Brine, and Vacuum
Solenoid Conduit Connection	1/2" tapped
Body Material	Bronze
