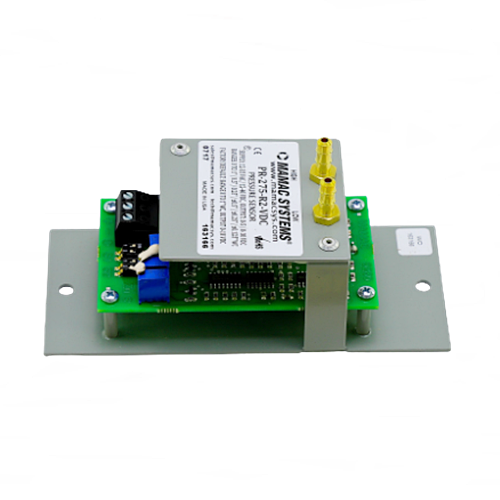

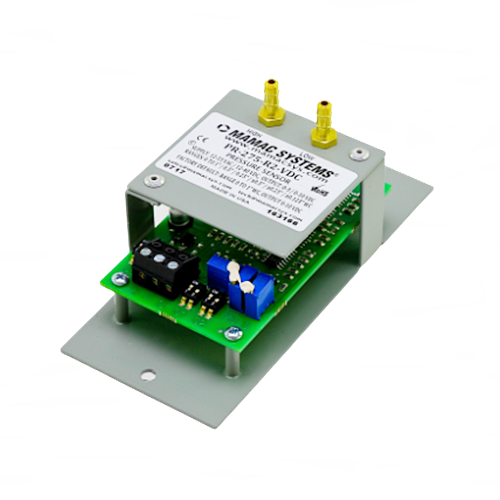

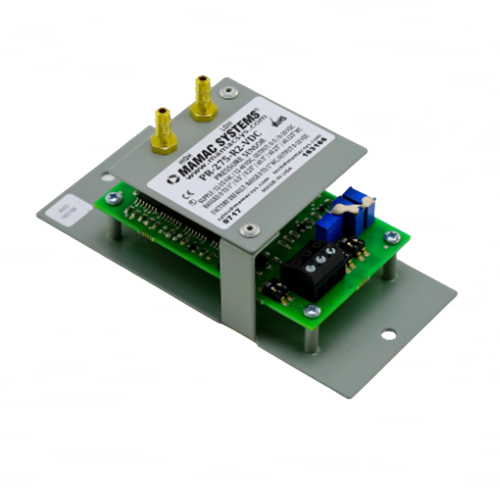

| Type | Panel mount Transducer |
|---|---|
| Range | 0 TO 1.0 / 0 TO 0.5 / 0 TO 0.25 / -0.5 TO +0.5 / -0.25 TO +0.25 / -0.125 TO +0.125 |
| Output | 0-5 VDC or 0-10 VDC |
| Supply Voltage | 12-40 VDC/ 12-35 VAC |
| Media Compatibility | Clean Dry Air or any Inert Gas |
| Overpressure | 10 PSID |
| Supply Current | VDC units: 10 mA max | mA units: 20 mA max |
| Load Impedance (mA output units) | 1.6K ohms max. at 40 VDC |
| Load Impedance (VDC output units) | 1K ohms min. |
Download Product Information:
Mamac PR-274/275 Low Pressure Sensor Product Catalog
Mamac Model PR-274/275 Low Pressure Sensor Technical Datasheet
