Mamac TE-703-B-12-B-2 Immersion Temperature Sensor 10K Ohm 6" Probe 1/4" NPT Adapter

Name: Mamac TE-703-B-12-B-2 Immersion Temperature Sensor 10K Ohm 6" Probe 1/4" NPT Adapter
Brand: Mamac
SKU: TE-703-B-12-B-2
Price: 14.39 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Mamac TE-703-B-12-B-2 Immersion Temperature Sensor 10K Ohm 6" Probe 1/4" NPT Adapter

SKU: TE-703-B-12-B-2

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$14.39 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

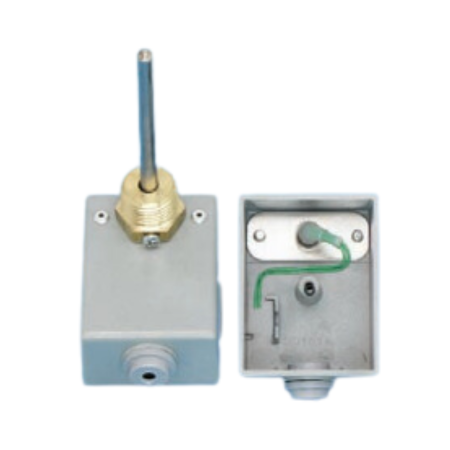

The Mamac TE-703-B-12-B-2 is an immersion temperature sensor with a 10K Ohm NTC thermistor (Type II) sensor. This device also has a 6" probe length and a 1/4" NPT adapter.

The sensor is constructed with a 304 stainless steel probe, galvanized steel flange, and a polycarbonate plastic enclosure to withstand -40 to 210°F (-40 to 100°C) temperature range.

The TE‑703‑B Series is compatible with hot/chilled water, condenser water, or low-pressure steam applications.

Operating Temperature Range	-40 to 210°F (-40 to 100°C)
Ambient Temperature Range	-40 to 160°F (-40 to 70°C)
Probe Material	304 Stainless Steel
Flange Material	Galvanized Steel
Bulkhead Fitting	Brass with Poly Compression Sleeve
Plastic Enclosure	Polycarbonate 30% glass filled, rated UL 94V-5-0
Element Type	10K Type II
Sensing Element	Thermistor
Sensor Length	6" Probe
Connection Size	1/4" NPT

Download Product Information:

Mamac TE-703/704 Immersion Temperature Sensor Data Sheet

Mamac TE-703/704 Immersion Temperature Sensor Technical Information
