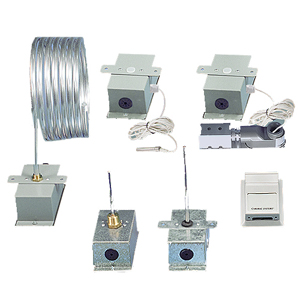

Mamac TE-211Z-E-E-2-1-E4 Temperature Sensor

Features:

• Six enclosures available for space, duct, immersion, duct averaging, probe strap-on and outside air applications
• Three temperature compensated output versions, 4 to 20 mA, 0-5 VDC and 0-10 VDC
• Non-interacting zero and span trimmers
• NIST traceable calibration
• Custom calibration of temperature range is available
• -30°F to 250°F wide operating range

Description:

TE-211Z/213 temperature sensors offer the industry’s most extensive range of enclosure, installation and sensor types to satisfy all HVAC, industrial and commercial applications. These revolutionary sensors incorporate more than thirty plus years of product development and experience drawn from millions of installations world wide in all types of applications. The RTD and transmitter are matched and calibrated as a complete assembly in a temperature chamber against a NIST traceable calibrated standard. The final accuracy is verified with a three point calibration check against the standard over the specified temperature range. The transmitter is equipped with non-interacting zero and span adjustment trimmers for site calibration and is reverse polarity protected against accidental mis-wiring. Output accuracy is not affected by long wire runs or electrical noise. The TE-211Z/213 provide an analog output linear and proportional to the calibrated temperature range. This product and process design combined with automated manufacturing processes yields a rugged, reliable, repeatable and stable temperature sensor at a low cost.

Specifications:

• Accuracy: ± 0.50°F FS   Accuracy of Duct Averaging Transducer is ±3°F
• Linearity: ± 0.05°F
• Repeatability: ± 0.01°F
• Transmitter Error: Better than ± 0.01% span
• Supply Voltage: 12-40 VDC; 12-35 VAC (VDC output units only)
• Ambient Temperature: -30°F to 150°F (-35°C to 60°C)
• Environmental: 10-95% RH Non-condensing
• Maximum Temperature Span: 250°F (138°C)
• Minimum Temperature Span: 35°F (19°C)

Conformance & Testing

RoHS Compliant
EMC Testing:
BS EN 55022:1998, BS EN 55024:1998,
EN 61000-3-3, EN 61000-4-2,
EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6,
EN 61000-4-11
