Marktime 74001 Panel Mount Time Switch 60-Minute

Name: Marktime 74001 Panel Mount Time Switch 60-Minute
Brand: Marktime
SKU: 74001
Price: 138.00 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Marktime 74001 Panel Mount Time Switch 60-Minute

SKU: 74001

Tariff HS Code: 9801.00.10

Brand:

Rating:

Quantity	Price	Stock
7 Usually Ships 2 - 4 Weeks	$138.00 /ea	7

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

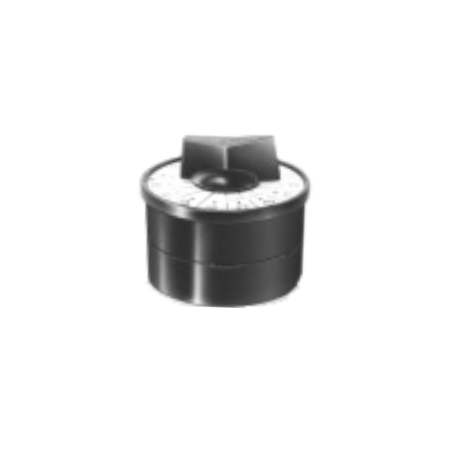

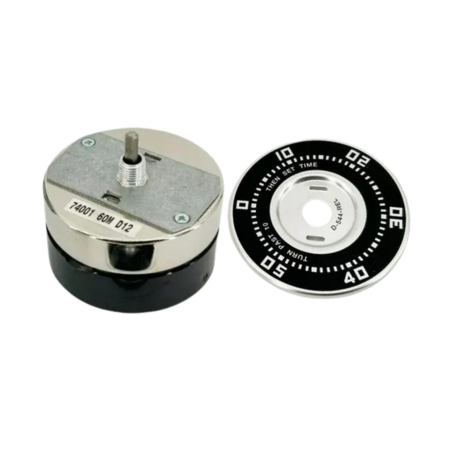

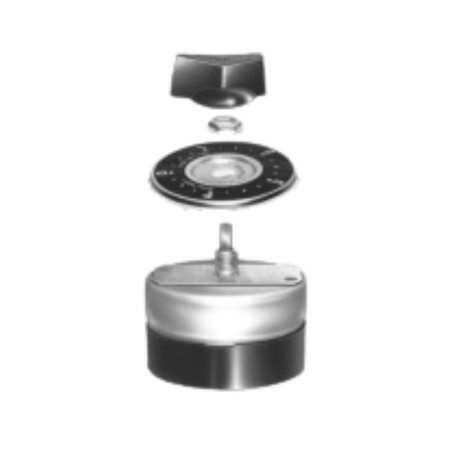

The Marktime 74001 is a heavy-duty SPDT panel mount time switch kit that includes a 60-minute dial, rotary knob, bracket, and screws. It is UL-listed and CSA-certified, ensuring safety compliance.

The time switch operates at 1Hp, 20 Amps, and 120 to 240 VAC power ratings. This device provides precise manual control of electrical devices and systems within a set time limit.

The 70 Series offers two mounting options: center stud or through-panel mounting. It is suitable for demanding applications that require high current loads, such as:

Medical Equipment
Heating and Heavy-Duty Blower Control
Residential or Commercial Pool, Spa, and Sauna

Process Control Equipment
Industrial or Commercial Cooking Equipment
Track, Fluorescent, and Incandescent Lighting

Horsepower	1Hp
Amperage	20 Amps
Voltage	120-240 VAC
Time Switch	60 Minutes
Configuration	SPDT
Approvals	UL Listed and CSA Certified

Download Product Information:

Marktime 70 Series Panel Mount Time Switch Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

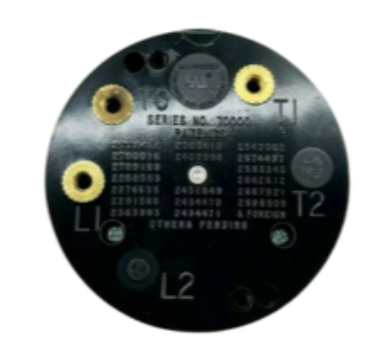

i have a similar timer that I am looking to replace; mine is a 4 pole (L1, L2, T1 and T2 brass screws exposed on the back) - does this have the same?

Asked on January 02, 2025 by Shane from Oakville, Ontario

1 Answers

Have an answer? Click Here

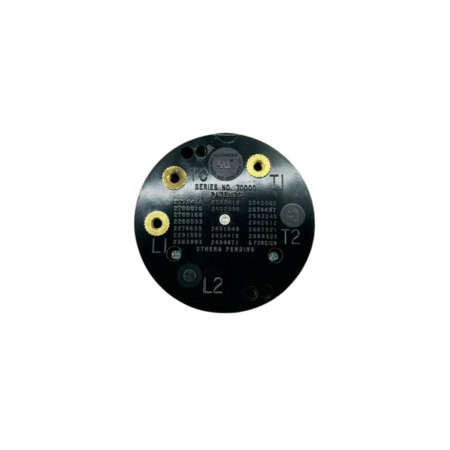

This 60 minute Marktime switch only has 3 brass terminals exposed.

Replied on February 24, 2025 by Ori from Industrial Stores
