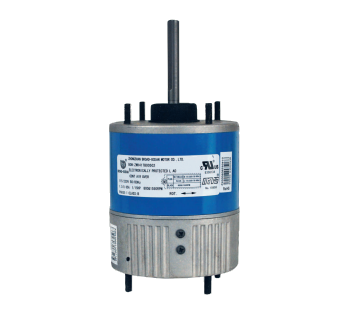

3.3" Commercial Refrigeration Evaporator Fan Motor

Azure® is an electronically controlled 3.3” motor (ECM) that replaces all 1/15 - 1/25 HP, 115/230V, and 1550/800 RPM commercial refrigeration evaporator fan motors for walk in cooler/freezer applications. For 1550 RPM, this motor connects easily to the fan controller via a standard Lyall plug. For 2-speed applications, the Lyall plug can be removed and the motor can be wired directly to a separate 2-speed control module using the included second speed tap for 800 RPM. Motor rotation is set using a simple jumper wire. Azure® is rated for 115V or 230V with nothing to set; plug it in to either voltage and it adapts to the correct voltage.

Specifications:

• Temperature Operating Range: -40° to 131°F

• Multi horsepower, self-adjusting from 1/15 to 1/25HP

• 1 or 2 speed operation (1550/800 RPM)

• Reversible rotation

• Auto voltage select (115/230V)

• High efficiency ECM technology

• No capacitor required

• UL Recognized
