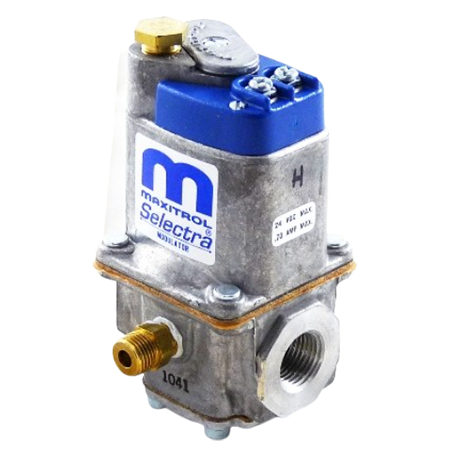

Maxitrol M420H-3/8 Modulator Valve for Liquid Propane Gas 3/8" NPT 1/2" PSI

Name: Maxitrol M420H-3/8 Modulator Valve for Liquid Propane Gas 3/8" NPT 1/2" PSI
Brand: Maxitrol
SKU: M420H-3/8
Price: 200.82 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Maxitrol M420H-3/8 Modulator Valve for Liquid Propane Gas 3/8" NPT 1/2" PSI

SKU: M420H-3/8

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 3 - 4 Weeks Usually Ships 3 - 4 Weeks	$200.82 /ea	Usually Ships 3 - 4 Weeks

Order in multiples of 25

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The M420H-3/8 is a modulating valve that has a 3/8" NPT pipe size. The valve is designed to operate without needing any external mechanical activation. CSA-certified.

The modulating valve is suitable for applications such as atmospheric, infrared, and direct-fired burners. It can be altered for indirect-fired atmospheric burners. The unit features a wider modulation span ideal for liquid propane gas.

The M420H-3/8 can be installed in a vertical position within a horizontal pipe run and downstream of other controls.

Maximum Inlet Pressure	1/2"
Pipe Size	3/8" NPT
Non-Operating Ambient Temperature	-50º to 185ºF (-45º to 85ºC)
Ambient Operating Temperature	-40º to 125ºF (-40º to 50ºC)
Vent Outlet Size	1/8" NPT
Certifications	CSA-certified
Gas	Liquid Propane

Download Product Information:

Maxitrol M420H-3/8 Modulator Valve Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

what is m420rh

Asked on December 05, 2016 by rich from enumclaw, wa

1 Answers

Have an answer? Click Here

The 'M' means a separate regulator must be used should be upstream of the modulator
The 'R' means the low fire by-pass outlet is on the right side of the valve.
The 'H' means that the valve has the capability for a total modulation span as much as 10" W.C.
Please note that the M420RH is only available in 1/2" NPT (not 3/8")

Replied on December 06, 2016 by Ron from Industrial Stores
