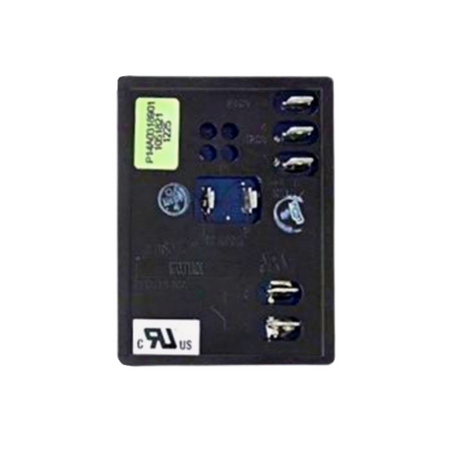

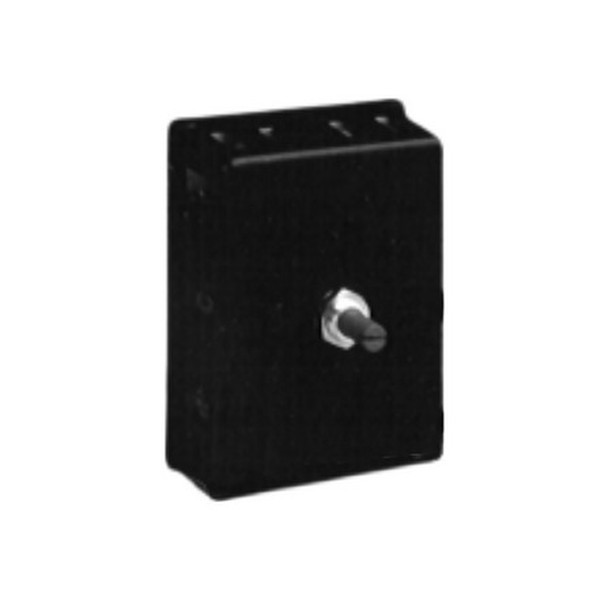

The Maxitrol P14A0318-901 is Pakstat Series 1 electronic thermostat with on or off control. This device operates at 120 VAC ± 10% and 50/60 Hz power ratings. UL and CSA Recognized.
This electronic thermostat controls heating and cooling with a 50 to 250°F temperature range. Found where temperature must be accurate and repeatable. It has quick-connect terminals providing easy service and installation.
The PAKSTAT Series 1 is an economical option for mechanical, pneumatic, or DIN-packaged controllers. Also available in digital indicating and cooling versions.
Note: The P14A0318-901 does not include 01724601-001 Sensor Probe and 03926811-901-P Faceplate, check out the Accessories tab.
| Solid State Relay Option | Switched 24Vdc @ 30mA to Control External SSR |
|---|---|
| Output Options | Normally Open (1 form A) Relay Contact |
| Relay Contact Ratings | 2 to 20 Amps at 12 to 240Vac, Resistive Load |
| Relative Humidity | 5% to 95% (non-condensing) |
| Stability | Better than ±1% of Span or ±4° |
| Input Voltage | 120 VAC ± 10%, 50/60 Hz |
| Control Operation | On/Off Control |
| Temperature Range | 50°F to 250°F |
| Static Deadband | ±1° (Nominal) |
Download Product Information:
By Paul
from BUFFALO NY
Yes, I would recommend this product to a friend or co-worker
It works fine.
