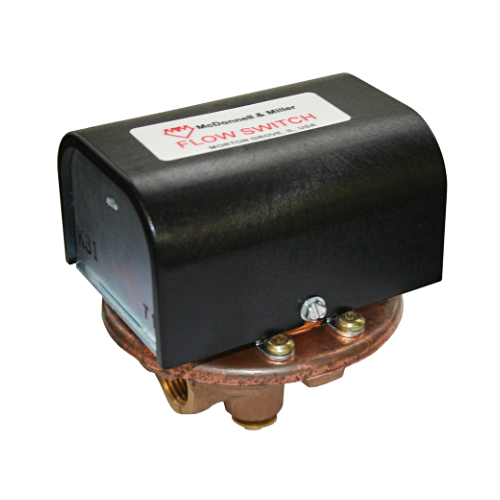

McDonnell & Miller FS1-J Flow Switch with Internal Threads

McDonnell & Miller FS1-J Flow Switch with Internal Threads
Images for general purposes only. Actual may be different than depicted.

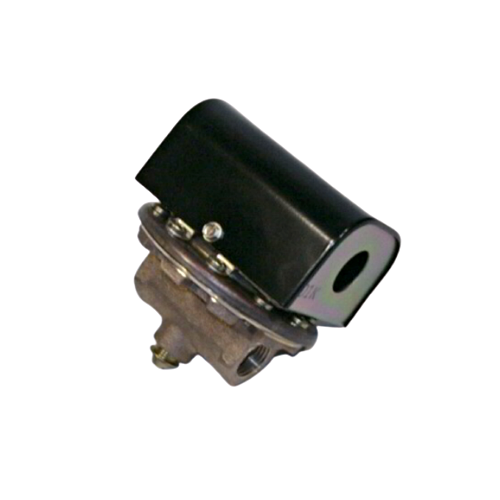

McDonnell & Miller FS1-J Flow Switch with Internal Threads McDonnell & Miller FS1-J Flow Switch with BSP Thread Connection

McDonnell & Miller FS1-J Flow Switch with Internal Threads

SKU: FS1-J
Rating:
Quantity Price Stock
1
Usually Ships 3-4 Weeks
$397.63     /ea
1
0
$0.00
0
$0.00
0
FS1-J
McDonnell and Miller FS1-J (113550) is an FS-1 Flow Switch with BSPT Thread Connection.

The Series FS-1 Flow Switches are designed to provide high sensitivity in controlling liquid flow.  It regulates water flow by turning on and off the electrical circuit when the flow stops or starts.  These switches are used for the HVAC systems, hydronic systems, water, fuel oil, some viscous liquids, and oils in-process work.

Maximum Temperature 225 F (107 C)
Minimum Ambient Temperature 32 F (0 C)
Minimum Fluid Temperature 32 F (0 C)
Pipe Connection Size 1/2" BSPT
Switch Type Single Pole Double Throw
Maximum Liquid Pressure 100 psi (7 kg/cm2)
