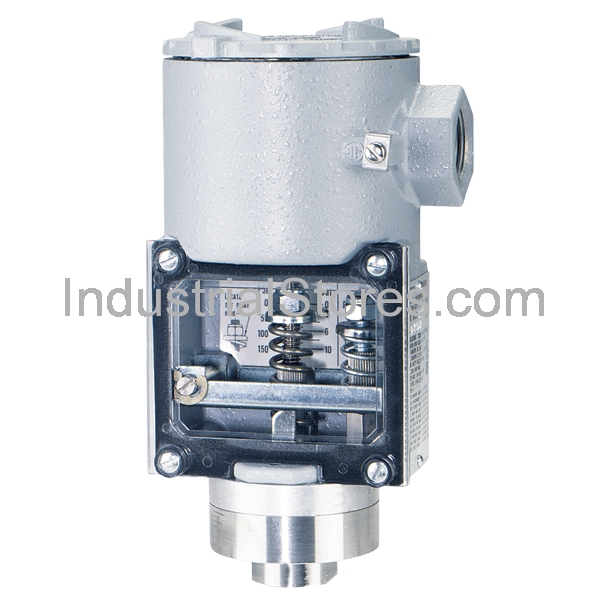

Mercoid SA1111E-A4-K1 Pressure Switch Diaphragm 10/150PSIG 1/4 NPTF ALUM

Mercoid SA1111E-A4-K1 Pressure Switch Diaphragm 10/150PSIG 1/4 NPTF ALUM
Images for general purposes only. Actual may be different than depicted.
Mercoid SA1111E-A4-K1 Pressure Switch Diaphragm 10/150PSIG 1/4 NPTF ALUM

Mercoid SA1111E-A4-K1 Pressure Switch Diaphragm 10/150PSIG 1/4 NPTF ALUM

SKU: SA1111E-A4-K1
Rating:
Quantity Price Stock
Usually Ships 3-5 Days
Usually Ships 3-5 Days
$652.36     /ea
Usually Ships 3-5 Days
0
$0.00
0
$0.00
0
SA1111E-A4-K1
The SERIES SA1100 Diaphragm Operated Pressure Switches are weatherproof and explosion-proof in one economical enclosure. Extremely rugged construction assures excellent reliability in chemical, petroleum and industrial plants. New design also provides burst pressure protection to 3000 psi (206 bar). The rolling diaphragm design maintains a constant effective area to minimize friction. This results in a minimum deadband as low as 5% of full-scale. Since many applications require higher deadbands, the SA1100 includes a separate adjustment of this when necessary. A pump being used to control liquid level in a tank would be a typical situation where this feature would be important. Both setpoint and deadband adjustments are protected, yet clearly visible behind a clear polycarbonate window and are fully isolated from the electrical components for additional safety. A 7/16? open-end wrench is the only tool required to change settings. Terminal blocks are provided for switch wiring connections and both internal and external ground screws are included. Standard housing is weatherproof to NEMA standards 1 through 4X and 13; explosion-proof to NEMA 7, Class I, Groups B, C & D; NEMA 9, Class II, Groups E, F & G. Optional construction adds drain to meet NEMA 3R IP54.
