Modine 3H0373620002 Inducer Assembly 115V 60 Hz 3000 RPM Clockwise

Name: Modine 3H0373620002 Inducer Assembly 115V 60 Hz 3000 RPM Clockwise
Brand: Modine
SKU: 3H0373620002
Price: 369.91 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Modine 3H0373620002 Inducer Assembly 115V 60 Hz 3000 RPM Clockwise

SKU: 3H0373620002

Brand:

Rating:

Quantity	Price	Stock
367 Usually Ships 2 - 4 Weeks	$369.91 /ea	367

Add to Cart

Add to Wishlist

The 3H0373620002 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Modine Parts 3H37362-2 Inducer Assembly	3H37362-2 Brand Modine

Add to Cart

Add to Wishlist

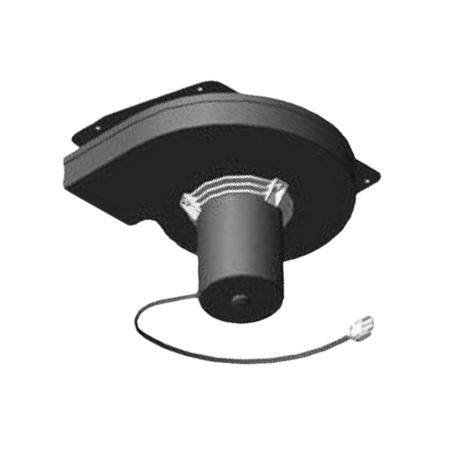

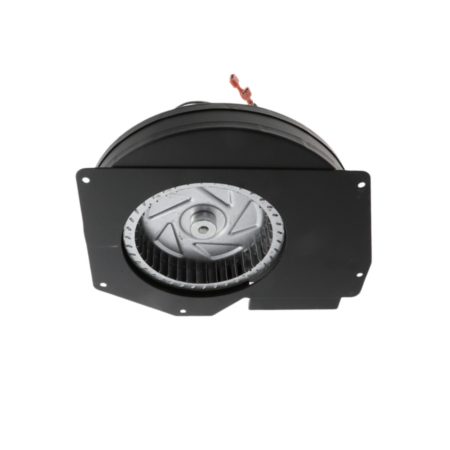

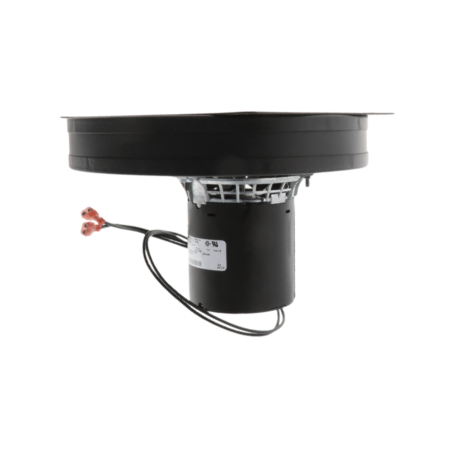

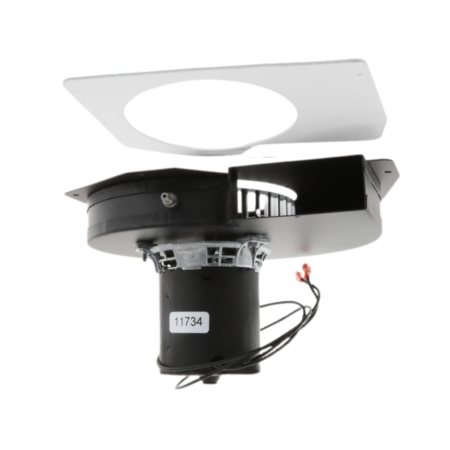

The Modine 3H0373620002 (56183) is a single-phase inducer assembly that operates at 115V, 2.2A, and 60 Hz electrical ratings. It comes with a 5H0797940000 gasket and a 5H0797950000 inducer assembly.

This component effectively draws air and gases from enclosed areas, ensuring proper ventilation. Features a 3.3" diameter motor with Class B insulation and a shaft that rotates at 3000 RPM in a clockwise direction.

The 3H0373620002 is a direct replacement for the obsolete model 3H37362-2 inducer assembly. It is compatible with the following unit heater and power exhaust model numbers:

BTS150
HD100
HDC100
PTS150

BTS175
HD125
HDC125
PTS175

BTS200
HDB100
HDS100
PTS200

BTS250
HDB125
HDS125
PTS250

Voltage	115V
Current	2.2A
Frequency	60 Hz
Number of Phase	Single-Phase
Motor Diameter	3.3"
Insulation Class	Class B
Rotation Speed	3000 RPM
Rotation Direction	Clockwise
Application	Commercial and Industrial
Motor Bearing	Ball-Bearing
