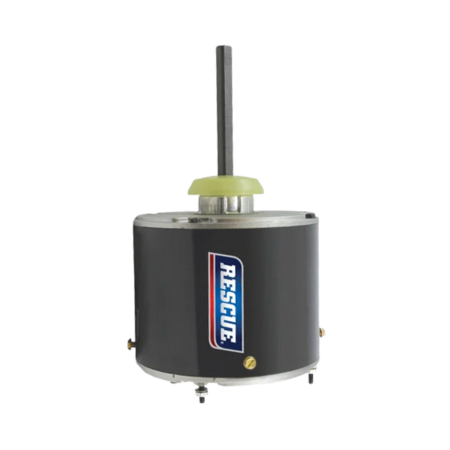

The Nidec-US Motors 5465 is a single-phase Rescue condenser fan motor rated at 1/2–1/5 HP, 208–230 VAC, 3.0–1.3 Amps, and 60 Hz. The motor has a 5.6" diameter with a 1/2" diameter, 5" long flat shaft that rotates in either direction at 1075 RPM with 2-speed operation.
Features:
The 5465 is a direct replacement for General Electric part number 5KCP39MGK209T. It is designed for commercial and residential condensing units and is compatible with 370V capacitors. Includes lead-end mounting holes for use with Trane and Rheem units.
| Amperage | 3.0 to 1.33 Amps |
|---|---|
| Horsepower | 1/2 to 1/5 Hp |
| Power Supply | 208-230 VAC, 60 Hz |
| Rotation Speed | 1075 RPM |
| Rotation Direction | Reversible |
| Motor Speed | 2-Speed |
| Shaft Size | 1/2" Diameter x 5" Length |
| Motor Type | Permanent Split Capacitor (PSC) |
| Ambient Temperature Rating | 60°C (140°F) |
| Capacitor | 12.5/10 MFD/370 VAC |
