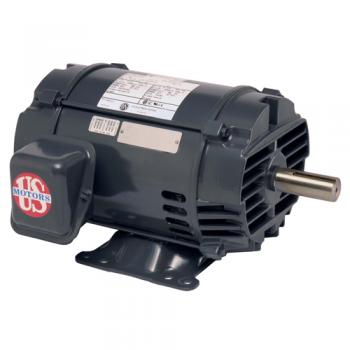

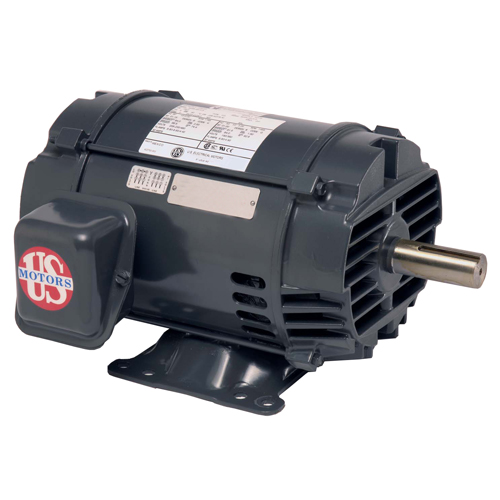

Nidec-US Motors (Emerson) D7P2D General Purpose Motor 7.5HP 208/460V 1765RPM

Nidec-US Motors (Emerson) D7P2D General Purpose Motor 7.5HP 208/460V 1765RPM
Images for general purposes only. Actual may be different than depicted.
Nidec-US Motors (Emerson) D7P2D General Purpose Motor 7.5HP 208/460V 1765RPM

Nidec-US Motors (Emerson) D7P2D General Purpose Motor 7.5HP 208/460V 1765RPM

SKU: D7P2D
Rating:
Quantity Price Stock
Usually Ships 7-10 days
Usually Ships 7-10 days
$752.22     /ea
Usually Ships 7-10 days

Shipping Note

Ships by Truck (LTL)

The D7P2D found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Nidec-US Motors (Emerson) D7P2B Motor 7.5HP 230/460V 1765RPM D7P2B

Brand Nidec
Nidec-US Motors (Emerson) D7P2B Motor 7.5HP 230/460V 1765RPM
0
$0.00
0
$0.00
0
D7P2D

Emerson Motors (Nidec) General Purpose Motors

The D7P2D is a three phrase open dripproof NEMA Premium efficient IE3 replacement motor. This motor is designed for pumps, fans, compressors, material handling and other general applications where contaminants are minimal.

Features:
  • World Motor ® Features Except Where Noted
  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame 56-320, Cast Iron Frame 360-440
  • Aluminum End Shields 56-250, Cast Iron End Shields 280-440
  • “CE” Mark on Nameplate (140 Frame & Larger)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • 1.15 Service Factor
  • Regreasable Bearings 180 Frame & Up
  • Double Shielded Bearings 140-400, Open On 440
  • Bearing Caps On 400 & 440 Frames
  • F1 Assembly Position except where noted
  • Lifting Provisions 210 Frame & Up
  • Conversion Kits: Drip Cover Kits (140-320 Frame)
Horsepower 7.5HP
Phase Type 3-Phase
Enclosure Open Dripproof
Wattage 5.6Kw
# of Poles 4
# of Speeds 1-Speed
RPM 1765 RPM
Frame 213T
Rotation Reversible
Voltage 208-230/460V
