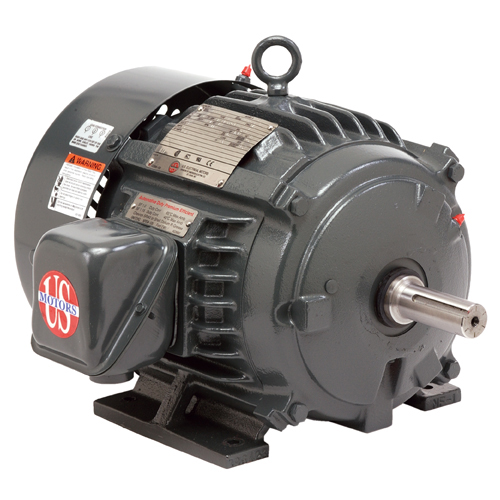

Designed for use with machine tools, material handling, packaging machines, test equipment, cranes and hoists, and applications having constant torque requirements. These motors are TEFC & TENV hostile duty, inverter duty 20:1 (3-60 Hz) speed range constant torque.
Features:
• INVERTER GRADE® Insulation System (Meets NEMA®† MG-1 Part 31)
• Double Dip & Bake With Extra Bracing
• Class F Insulation, 1.0 Service Factor On PWM
• Cast Iron Frame (140: Rolled Steel), Cast Iron End Brackets
• Corrosion Resistant Mill & Chemical Duty Paint
• Stainless Steel Nameplate & Zinc Plated Hardware
• Shaft Slinger On Pulley End For IP54 Protection
• 40°C Ambient, NEMA®† Design A Performance
• Regreasable Bearings, Lifting Provisions 180 Frame & Up
• Double Shielded Bearings 140-360
• Cast Iron Inner Bearing Caps (280 Frame & Up)
• Premium Efficient Design, Special Balance, F1 Assembly Position
• Class F Thermostats (One Per Phase)
• Encoder provision standard on stock models
• Insulated shaft ODE 400 Frame & Up
• Conversion Kits: All Cast Iron Upgrade, C&D Flanges, Drip Cover Kits (except 320-360)
• Shaft Grounding Standard 3HP & Up
