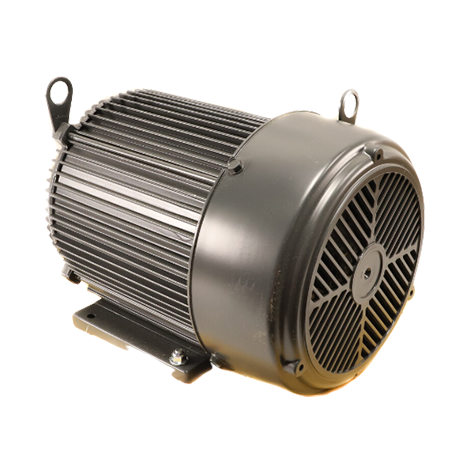

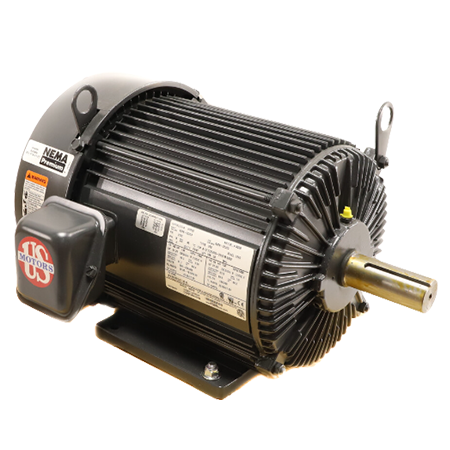

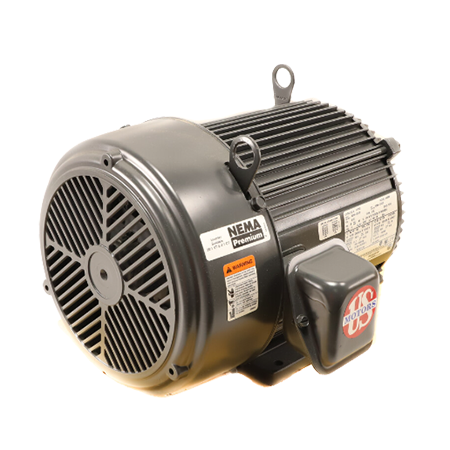

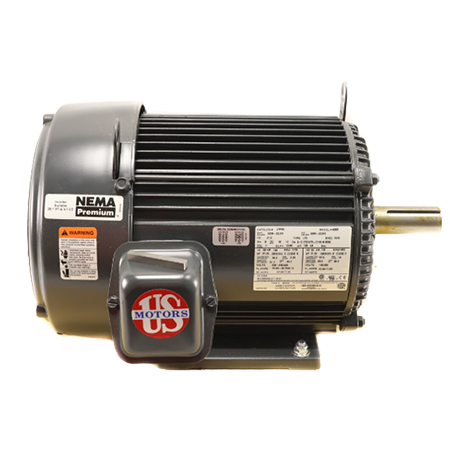

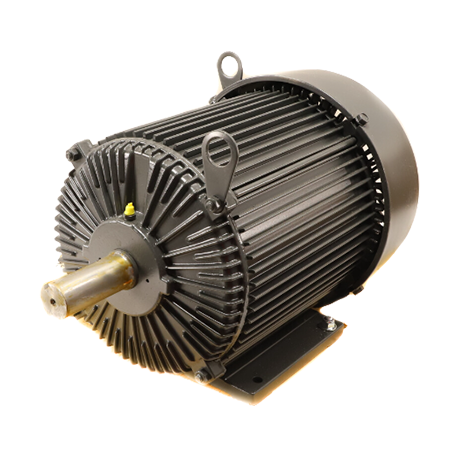

The U7P2D is a three-phase totally enclosed motor that has a power rating of 208-230/460V and 50/60 Hz Frequency.  The motor is designed with a double-shielded frame made of aluminum and a shaft slinger to prevent liquid contaminants from going into the pulley end.  CE-marked, UL-Listed, and CSA-certified

The general purpose fan cooled motor is suitable for general industrial equipment such as fans, blowers, compressors, pumps, and direct connected equipment.  The unit features dual voltage ratings which are ideal for a part winding start on low voltage.

The U7P2D can easily be installed in a horizontal footed mounting with regreasable shaft end bearings.  It is also constructed with class F insulation and NEMA design B that provide optimum performance.  Available also are the SGR-1.375-UKIT-1A4 split ring and EP2400 Epoxy for the split ring accessories.
