Nidec-US Motors 8904 Direct Driver Blower Motor 1-Phase 3/4 HP 115V 60 Hz 1075 RPM 3-Speed

Nidec-US Motors 8904 Direct Driver Blower Motor 1-Phase 3/4 HP 115V 60 Hz 1075 RPM 3-Speed
Images for general purposes only. Actual may be different than depicted.
Nidec-US Motors 8904 Direct Driver Blower Motor 1-Phase 3/4 HP 115V 60 Hz 1075 RPM 3-Speed Nidec-US Motors 8904 Direct Driver Blower Motor 1-Phase 3/4 HP 115V 60 Hz 1075 RPM 3-Speed

Nidec-US Motors 8904 Direct Driver Blower Motor 1-Phase 3/4 HP 115V 60 Hz 1075 RPM 3-Speed

SKU: 8904
UNSPSC: 26101105
Rating:
Quantity Price Stock
3
Usually Ships 2 - 4 weeks
$190.44     /ea
3

The 8904 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Trane MOT2647 Motor 3-Phase 3/4 HP 115V 1075 RPM CCW 48-Frame MOT2647

Brand Trane
Trane MOT2647 Motor 3-Phase 3/4 HP 115V 1075 RPM CCW 48-Frame
0
$0.00
0
$0.00
0
8904

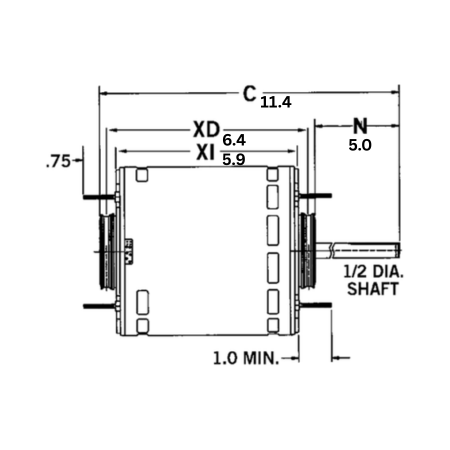

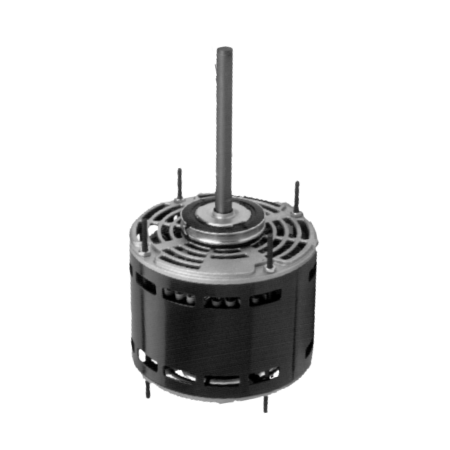

The Nidec-US Motors 8904 is a single-phase permanent split capacitor (PSC) direct-drive blower motor with a 5.6" diameter body and 2.5" diameter hub ring (Trane RNG0957).  It operates at 3/4 HP, 115V, 60 Hz, and 9.5A.  CSA Listed, ensuring safety compliance.

Features

  • 24" Leads
  • All-Angle Mount
  • Continuous Duty, Air Over
  • Automatic Reset Thermal Overload Protector
  • Bearings with All-Angle Thrust System
  • Stud Extensions

This motor runs at 1075 RPM with reversible rotation and offers 3-speed operation for flexible airflow control.  Built with a 48Y frame, Class B insulation, and an open air-over enclosure, it is designed for reliable and efficient performance.

The 8904 is a direct replacement for the Trane MOT2647 motor.  It is commonly used in residential and commercial direct drive fans and blowers.
Ambient Temperature 40°C
Enclosure Type Open Air Over
Rotation Speed 1075 RPM at 3-Speed
Rotation Direction Reversible
Number of Phase 1-Phase
Amperage 9.5A
Horsepower 3/4 HP
Voltage 115V
Frequency 60 Hz
Capacitor 15.0 MFD / 370V Capacitor
