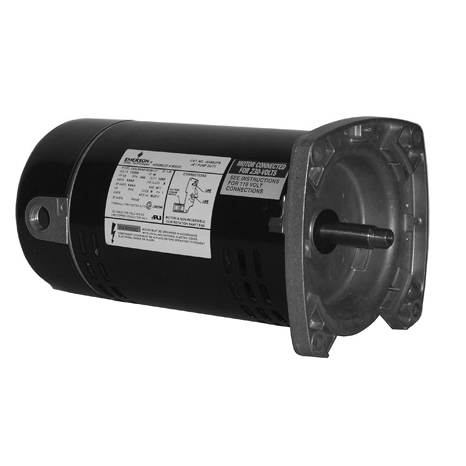

Nidec-US Motors (Emerson) JJ0752-2V Motor 3/4HP 115/230V 3450RPM

Nidec-US Motors (Emerson) JJ0752-2V Motor 3/4HP 115/230V 3450RPM
Images for general purposes only. Actual may be different than depicted.
Nidec-US Motors (Emerson) JJ0752-2V Motor 3/4HP 115/230V 3450RPM

Nidec-US Motors (Emerson) JJ0752-2V Motor 3/4HP 115/230V 3450RPM

SKU: JJ0752-2V
Rating:
Quantity Price Stock
Usually Ships 7-10 days
Usually Ships 7-10 days
$325.28     /ea
Usually Ships 7-10 days
0
$0.00
0
$0.00
0
JJ0752-2V
Nidec Special Application Single Phase ODP Motor

These square flange and C-face capacitor start motors are designed for jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps.

Features:

• 303 Stainless Steel Shaft
• C-Face: 7/16-20 UNF2A Thread
• Square Flange: 1/2-20 UNC-2A Thread
• Ball Bearings (Locked Drive End Bearing)
• Continuous Duty
• 60 Hertz
• EZ-AccessTM Motor Cover
• 40°C Ambient
• Automatic Reset Thermal Overload Protector
• Round Frame (Without Base), NEMA®† 56C C-Face or Square Flange Mounting
• Power Leads Supplied For Proper Connection To Pressure Switch
• Voltage Selector Switch (Catalog Numbers Ending With "-2V" and "UPR")
Horsepower 3/4HP
RPM 3600 RPM
Voltage 115-230V
Frame 56J
Hertz 60HZ

Download Product Information:
