Nordyne 902816 Blower Assembly 3/4 HP 115V

Name: Nordyne 902816 Blower Assembly 3/4 HP 115V
Brand: Nordyne
SKU: 902816
Price: 757.97 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Nordyne 902816 Blower Assembly 3/4 HP 115V

SKU: 902816

UNSPSC: 40101601

Brand:

Rating:

Quantity	Price	Stock
9 Usually Ships 2 - 4 Weeks	$757.97 /ea	9

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

Add to Cart

Add to Wishlist

The Nordyne 902816 is a complete multi-speed blower assembly that operates at 3/4 HP and 115V electrical ratings.

Assembly Inclusions

902346 Blower Motor
903489 Motor Mount Kit
667277 Blower Wheel (10" x 11")
01-0024 Single Round Run Capacitor (10 MFD)

This assembly ensures proper air circulation for heating and cooling functions, supporting system performance and comfort.

It directly replaces M0013005, M0012101, 903817, and 259462. Compatible with the following furnace model numbers:

FG6RA 096C-20B
FG6RA 120C-20C
FG6RC 100C-20B
FG6TA 096C-20B
G5RA 096C-20
G5RA 120C-20-H
G5RA 144N-20
G6RA 096C-20C
G6RA 120N-20C
G6RC 100N-20B
G6TA 120N-20C
GL1RA 126N-20C
KG6RA 120C-20C
KG6RA-120N-20C
KG6RC 120N-20C
KG6TA 120C-20C
MGF1RC120C20C
PGF1RC120C20C

FG6RA 096C-20C
FG6RA 120N-20C
FG6RC 100N-20B
FG6TA 096N-20B
G5RA 096C-20-H
G5RA 120N-20
G5RC 120C-20
G6RA 096N-20B
G6RA 144C-20C
G6RC 120C-20C
GL1RA 108C-20C
GL1RC 120D-20C
KG6RA 144C-20C
KG6RA-144N-20C
KG6RC-120C-20C
KG6TA 120N-20C
MGF1TA120C20C
PGF1TA120C20C

FG6RA 096N-20B
FG6RA 144C-20C
FG6RC 120C-20C
FG6TA 120C-20C
G5RA 096N-20
G5RA 144C-20
G5RD 120C-19
G6RA 096N-20C
G6RA 144N-20C
G6RC 120N-20C
GL1RA 108N-20C
KG6RA 096C-20B
KG6RA-096C-20C
KG6RC 100C-20B
KG6TA 096C-20B
L1RC 120D-20C
MGF1TA120N20C
PGF1TA120N20C

FG6RA 096N-20C
FG6RA 144N-20C
FG6RC 120N-20C
FG6TA 120N-20C
G5RA 120C-20
G5RA 144C-20-H
G6RA 096C-20B
G6RA 120C-20C
G6RC 100C-20B
G6TA 120C-20C
GL1RA 126C-20C
KG6RA 096N-20B
KG6RA-096N-20C
KG6RC 100N-20B
KG6TA 096N-20B
MGC1RC120D20C
PGC1RC120D20C

Horsepower	3/4 HP
Voltage	115V
Application	Furnaces

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

I have model GL1RA 126C-20C and the blower motor is 1/2hp, 10.10 amps, the blower assy replacement you recommend is 3/4hp, will that work?

Asked on September 10, 2025 by johnny from TN

1 Answers

Have an answer? Click Here

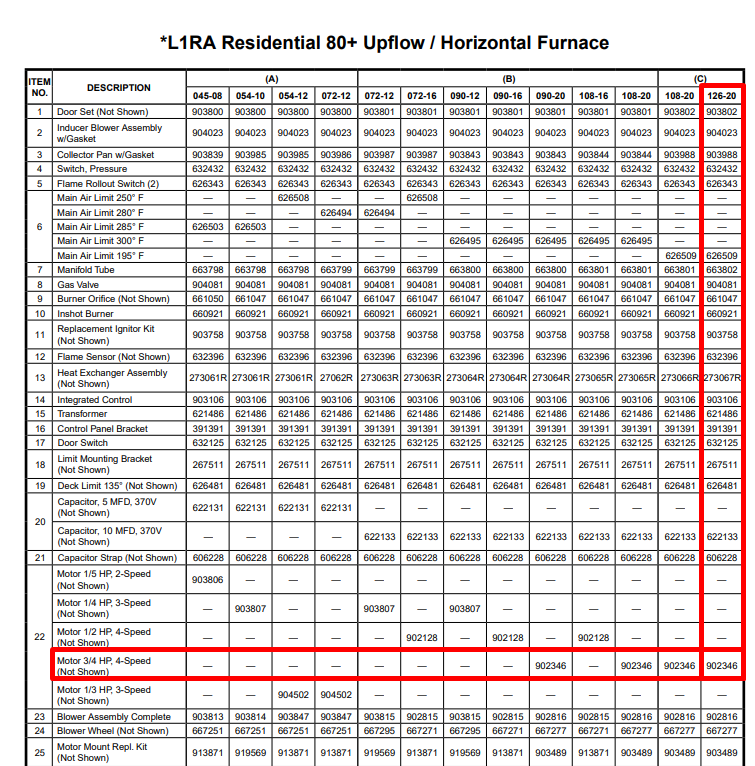

As per the L1RA Parts breakdown, for the 126-20 Uplow Furnace, the suggested motor is the 3/4 HP, 4-Speed.

The Nordyne 902346 3/4Hp 4Spd 120V Blower Motor Is the suggested motor.
