Nordyne 921483 Coil Assembly O2M Micro Channel

Name: Nordyne 921483 Coil Assembly O2M Micro Channel
Brand: Nordyne
SKU: 921483
Price: 657.91 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Nordyne 921483 Coil Assembly O2M Micro Channel

SKU: 921483

UPC: 663132276226 UNSPSC: 40101718

Brand:

Rating:

Quantity	Price	Stock
22 Usually Ships 3 - 4 Weeks	$657.91 /ea	22

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

The 921483 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Nordyne 921693 Evaporator Coil	921693 Brand Nordyne

Add to Cart

Add to Wishlist

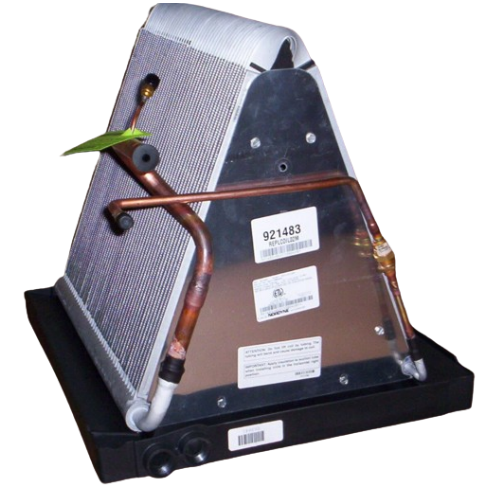

The 921483 is an evaporator coil that has a 3/8" liquid line, 3/4" suction line, 3/4" drain connection, and 0.067 orifice size. The evaporator consists of a drain pan and features micro-channel fins made of aluminum for optimum performance. UL listed & recognized.

The evaporator coil is suitable for air handler applications and is used to absorb heat and remove moisture from inside your home. It is done by having cold refrigerant flow into the copper tubing of the evaporator which then absorbs the heat from the air being pushed over by the blower fan to provide cool air. The moisture then becomes condensed and flows into the drain pan.

The unit is compatible with models B3BM-036K-BB, B3BM-042K-BB, B3BM-048K-BB, GB3BM-036K-B, and GB5BM-T30K-B which can be used with R-22 and R-410A refrigerants for efficient air cooling. Also available are the 664067R replacement restrictor orifice and 664080R piston orifice accessory.

The 921483 replaces the following part numbers:

265870
265890A
265870A
275961A
265880A
265870R
917207
917211

919171
921299
921693
917228A
917189B
917209D
917226D
917228D

917211D
919137D
919171D
919172D
919511D
919513D
919173D
917227N

Approvals	UL Listed & Recognized
Refrigerant	R-22, R-410A
Material	Aluminum
Orifice Size	0.067
Suction Line Size	3/4"
Liquid Line Size	3/8"
Drain Connection Size	3/4"

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

will this fit in a GB3M-048k-B-10B air handler

Asked on June 10, 2024 by Koyal from Laplace, LA

1 Answers

Have an answer? Click Here

The Nordyne 921483 is the correct coil assembly for the GB3M-048k-B-10B air handler. At time of writing, this coil is in stock. Please note that due to fragility, this coil must ship by ground transport and not standard couriers such as UPS and FedEx.

Replied on June 10, 2024 by Ori from Industrial Stores

will this work with 3 ton unit

Asked on August 23, 2016 by earl from DeFuniak Fl 32435

1 Answers

Have an answer? Click Here

They dont offer a tech sheet on this unit, however we may still be able to help. Can you advise which make and model of the 3 ton unit you have ?

Replied on August 23, 2016 by Ori from Industrial Stores
