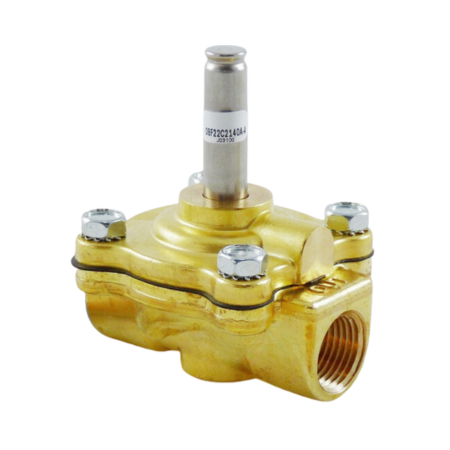

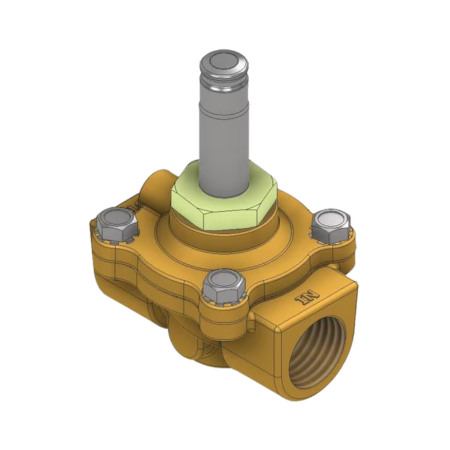

Parker 08F22C2140AAF Pilot-Operated Solenoid Valve 1/2" NPT 2-Way Normally Closed

Parker 08F22C2140AAF Pilot-Operated Solenoid Valve 1/2" NPT 2-Way Normally Closed
Images for general purposes only. Actual may be different than depicted.
Parker 08F22C2140AAF Pilot-Operated Solenoid Valve 1/2" NPT 2-Way Normally Closed Parker 08F22C2140AAF 2-Way Normally Closed Pilot-Operated Solenoid Valve

Parker 08F22C2140AAF Pilot-Operated Solenoid Valve 1/2" NPT 2-Way Normally Closed

SKU: 08F22C2140AAF
Rating:
Quantity Price Stock
Usually Ships 2 - 4 Weeks
Usually Ships 2 - 4 Weeks
$172.22     /ea
Usually Ships 2 - 4 Weeks
0
$0.00
0
$0.00
0
08F22C2140AAF
The Parker 08F22C2140AAF is a 2-way, normally closed, pilot-operated solenoid valve with a 1/2” NPT connection and a 5/8" orifice diameter.  It features a brass body for enhanced durability and an NBR seal that ensures reliable performance.

This component operates at 6.0W and delivers a flow capacity of 4.0 Cv.  It can handle a maximum fluid temperature of 180°F and a maximum ambient temperature of 77°F.  The operating pressure differential ranges from 5 to 135 PSI for water and light oil, and up to 200 PSI for air and inert gas.

The 08F22C2140AAF with the Parker AF4C05 coil substitutes the Asco 8210G202 solenoid valve.  This solenoid valve belongs to the Gold Ring Series, designed for general service applications and compatible with the following:

Air Compressors and Dryers
Cooling of Machine Tools
Food Processing
Molding Equipment
Automated Systems
Fire Suppression Equipment
Hospital Equipment
Sterilizers
Car Wash
Floor Cleaning Equipment
Irrigation Systems
Water Treatment and Purification

Note:  For optimal performance, valves should be mounted with the solenoid coil positioned vertically and upright.
Body Material Brass
Seal Material NBR
Valve Operation Normally Closed
Valve Configuration 2-Way
Connection Size 1/2" NPT
Orifice Diameter 5/8"
Flow Capacity 4.0 Cv (3.45 Kv)
Operating Pressure Differential 5 to 135 psi (Water, Light Oil) / 200 psi (Air, inert Gas)
Maximum Fluid Temperature 180°F (82°C)
Power Consumption 6.0W

Download Product Information:

Parker Gold Ring Series Solenoid Valve Catalog
