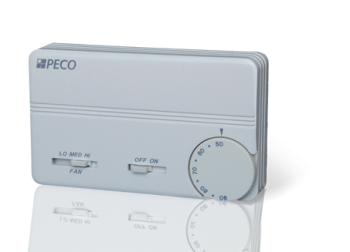

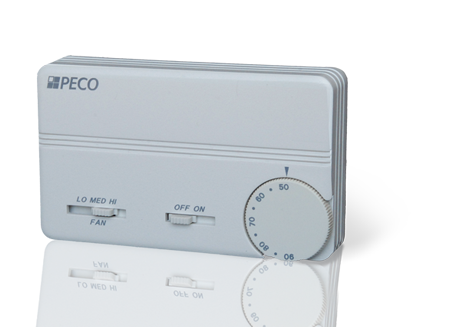

Peco T155 Auto/Manual Changeover Thermostat
The T155 thermostat is designed for use with HVAC systems including two or four-pipe fan coil applications. Available in both Auto Changeover and Manual Changeover models, the T155 is ideal for installations requiring either automatic internal switching between heating and cooling or manual switching between heating and cooling. Solid state accuracy offers comfort and efficiency, while contemporary styling complements room décor. Only PECO offers advanced self-configuring circuitry that allows the T155 electronic thermostat to be applied directly to input voltages from 24 to 277 VAC, 50 or 60Hz. Thermostat outputs are suitable for connection to relays, valves and similar pilot duty loads. The system and fan switches will handle inductive and resistive loads. The TA155-046 is configured for Cool-Heat-Off, 3-speed fan, wire leads.
Features:
| Self-Configuring Circuitry | 24 to 277 VAC, 50 or 60 Hz |
|---|---|
| Temperature Range | 50 to 90°F / 10 to 32°C |
| Maximum Ambient Temperature | 130°F / 54°C |
| Load Connections | Terminal block or wire lead, depending on model |
| Mounting | Installs on a standard 2" x 4" (50.8mm x 101.6mm) device box |
| Fan Operation | Continuous, cycled operation achievable with relays |
| Agency Approvals | UL, UL Canada, CE |
