Delivering Comfort and Efficiency

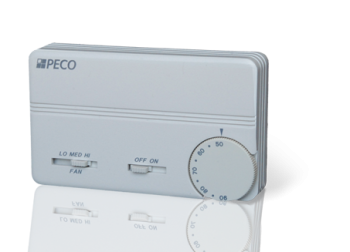

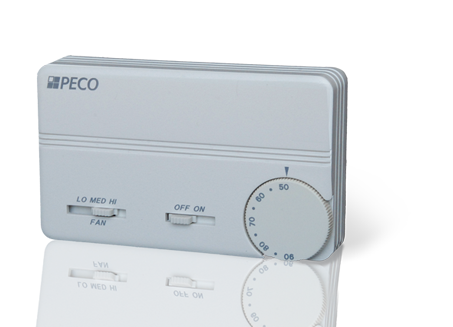

The T155 thermostat is designed for use with HVAC systems including two or four-pipe fan coil applications. Available in both Auto Changeover and Manual Changeover models, the T155 is ideal for installations requiring either automatic internal switching between heating and cooling or manual switching between heating and cooling. Solid state accuracy offers comfort and efficiency, while contemporary styling complements room décor.

Universal Voltage Capability

Only PECO offers advanced self-configuring circuitry that allows the T155 electronic thermostat to be applied directly to input voltages from 24 to 277 VAC, 50 or 60Hz. Thermostat outputs are suitable for connection to relays, valves and similar pilot duty loads. The system and fan switches will handle inductive and resistive loads.

Configurable for Specific Applications

The standard T155 is user configurable for either unit or remote thermistor sensing. Fan operation is continuous or can be cycled with the use of a load handling relay.

0-10 VDC / Changeover Thermostat

• Solid state precision & dependability
• Up to 3-speed fan switching available
• Accepts 24 to 277 VAC
• Auto changeover (TB155 & TA167)
• Manual changeover (TA155)

Models

• TA155-028 On-Off, 3-speed fan, 2-pipe, wire leads.
• TA155-046 Cool-Heat-Off, 3-speed fan, wire leads.
• TA155-047 Cool-Heat -Off, 3-speed fan, terminal block.
• TB155-046 On-Off, 3-speed fan, wire leads.
• TB155-048 On-Off, 3-speed fans, terminal block.
