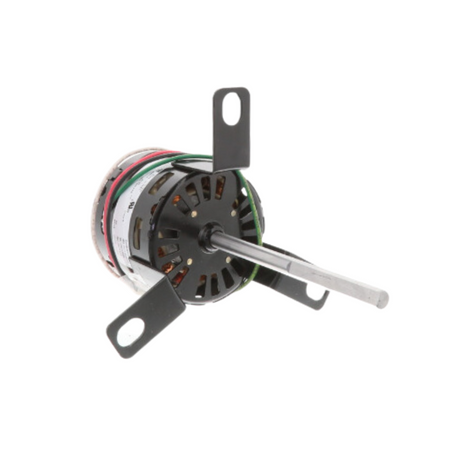

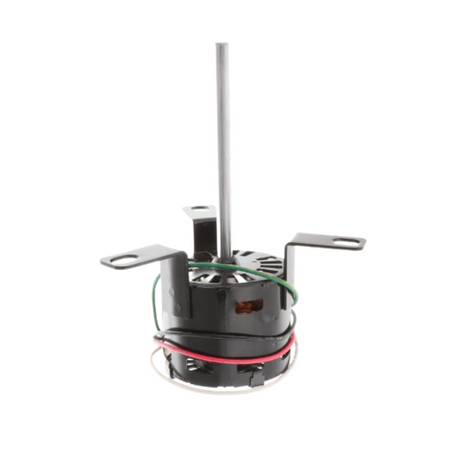

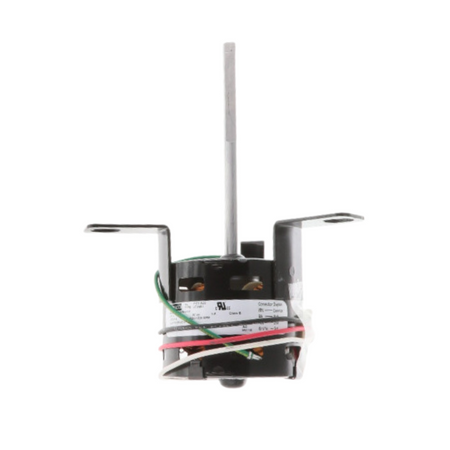

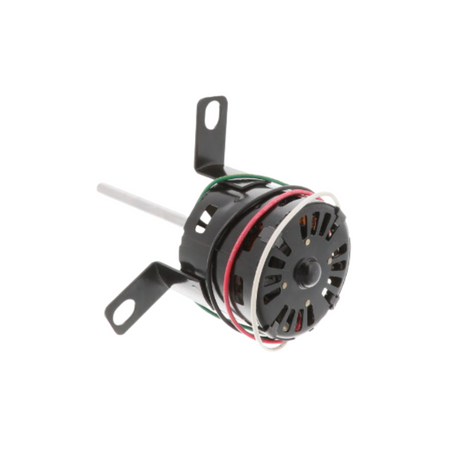

The PennBarry 56342-0 is a vent electric motor that operates at 115V and 60 Hz power ratings. This device has a 3/8” shaft that rotates 1500/1350 RPM in a clockwise direction at 2-speed. UL Recognized.
The motor features thermal protection which prevents fire or electronic damage. This component also has a self-lubricating bearing which provides quiet and smooth operation.
The 56342-0 direct replaces Fasco 7163-7868, 7173-1622, A.O. Smith JA2M417, and JA2M417N. Compatible running with Zephyr Z3H or Z5H ceiling and inline centrifugal fan.
| Frequency | 60 Hz |
|---|---|
| Motor Size | 3-1/3" |
| Amperage | 1.0/0.5 Amps |
| Shaft Size | 3/8” |
| Shaft Rotation | Clockwise at Shaft End |
| Rotation Speed | 1500/1350 RPM |
| Motor Speed | 2-Speed |
| Voltage | 115V |
| Enclosure | Open |
| Protector | Thermally Protected |
