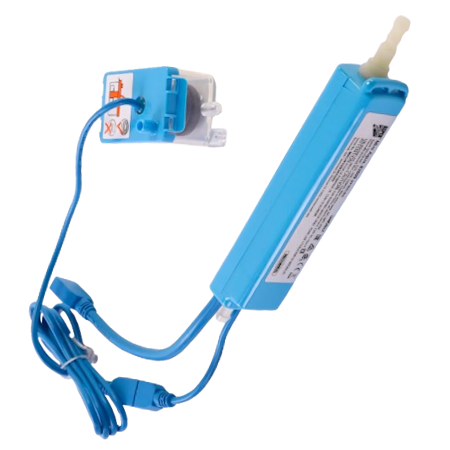

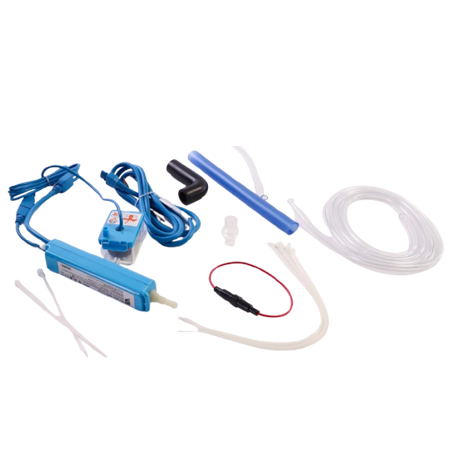

The RectorSeal 83809 is a mini aqua pump kit that operates on a 100-250V supply for universal voltage compatibility.  It is designed for use with ductless mini-split and other HVAC systems to remove condensed water from the evaporator drain pan.  It features a compact, ultra-slim profile with a separate pump and reservoir connected by vinyl tubing and a communication cable.  The fully potted design enhances moisture and vibration resistance, while the self-priming pump and modular terminals allow for reliable, quiet operation.

The kit includes built-in dry contacts (3 A NO/NC rated at 5 A inductive) suitable for alarm and control integration, and its compact dimensions fit easily inside line-set covers or evaporator cabinets.  It delivers up to 3.2 GPH flow at zero head and handles condensate effectively up to a 33-ft discharge head, helping protect equipment and surrounding structures from moisture buildup.

Easily mount the pump assembly near the condensate drain line and position the reservoir below the drain pan, then connect the included inlet/discharge tubing and wiring.  The 83809 directly replaces part number  ASP-MA-UNI.
