Rectorseal 83909 Aspen Mini Orange Condensate Pump Kit 16W .17A 100-250V

Name: Rectorseal 83909 Aspen Mini Orange Condensate Pump Kit 16W .17A 100-250V
Brand: Rectorseal
SKU: 83909
Price: 268.78 USD
Availability: InStock

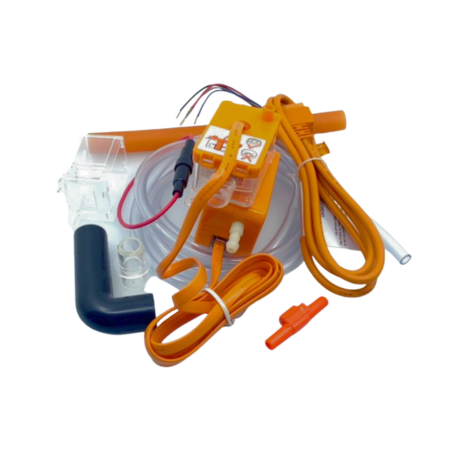

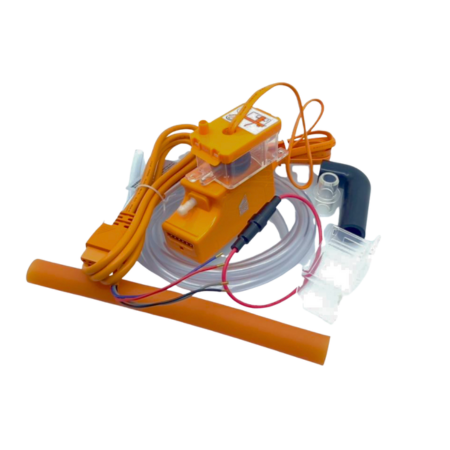

Images for general purposes only. Actual may be different than depicted.

Rectorseal 83909 Aspen Mini Orange Condensate Pump Kit 16W .17A 100-250V

SKU: 83909

UPC: 021449839099 UNSPSC: 40151500

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 2 - 4 Weeks	$268.78 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The Rectorseal 83909 (ASP-MO-UNI) is an Aspen mini orange condensate pump kit designed for remote-mounted applications. CSA Listed, ensuring safety compliance.

Package Inclusions

Pump Assembly
Installation Manual
Inline Reservoir
Submersible Reservoir
Modular 6’ Power Cable
8” x 5/8” ID Inlet Tube
5’ x 1/4" ID Vinyl Discharge Tube
6” x 1/4" ID Vinyl Breather Tube
(2) Self-Adhesive Velcro Strips
(1) Anti-Siphon
(6) Cable Ties
Drain Hose Adaptor
Inline Fuse
90° Elbow

This kit features a self-priming operation, gravity-fed inlet, fully potted electronics, and modular terminals for quick and secure connections.

Designed for quiet removal of condensate in ductless mini-split AC systems. Allowing the pump to be installed remotely above ceilings or inside a line set cover.

Power Supply	100-250 VAC
Power Consumption	.17A and 16W
Pump Dimension	4.25'' L x 1.5'' W x 2'' H
Maximum Capacity	49,500 btu
Maximum Temperature	104°F
Maximum Head	33'
Maximum Suction Lift	5'
Cable Length	6”
Duty Cycle	Non-continuous
Dry Contact Rating	3A NC

Download Product Information:

RectorSeal Aspen Pump Selection Guide

RectorSeal Aspen Condensate Pumps for Mini-Split Systems Catalog

RectorSeal 83909 Aspen Mini Orange Condensate Pump Kit Datasheet
