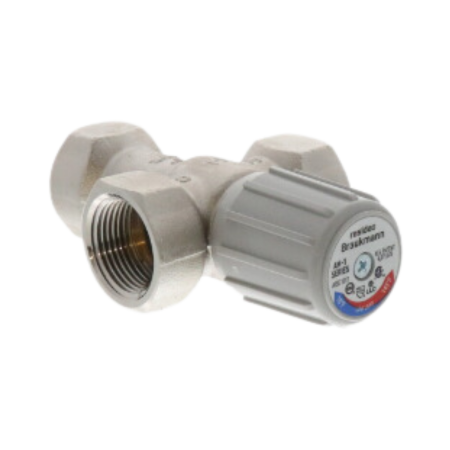

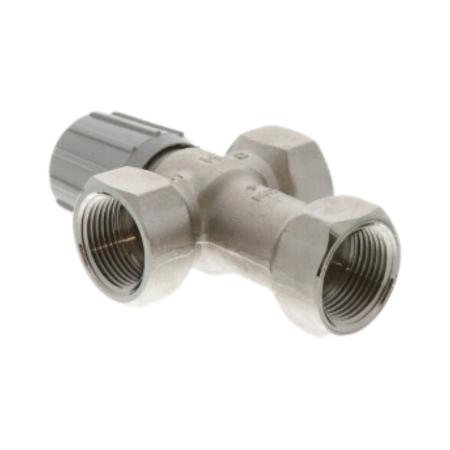

Resideo AM102-1LF Mixing Valve 1" NPT 70-145F

Resideo AM102-1LF Mixing Valve 1" NPT 70-145F
Images for general purposes only. Actual may be different than depicted.
Resideo AM102-1LF Mixing Valve 1" NPT 70-145F Resideo AM102-1LF Mixing Valve 1" NPT 70-145F

Resideo AM102-1LF Mixing Valve 1" NPT 70-145F

SKU: AM102-1LF
UPC: 8526733793
Rating:
Quantity Price Stock
4
Usually Ships 2 - 4 Weeks
$169.91     /ea
4

Buy in Bulk & Save

Quantity Price
4+ $160.95 /ea
0
$0.00
0
$0.00
0
AM102-1LF
The Resideo AM102-1LF is a mixing valve with 1” NPT that can hold 150 psi and 4.3 Cv.  This device has a nickel-plated brass body and EPDM rubber o-rings.  CSA Listed.

The mixing valve adjusts, maintains, and limits the hot water temperature settings to provide protection.  It features a Teflon coating that helps prevent mineral build-up.

The AM-1 Series is suitable for automatic faucets, photo processing, nursing homes, public facilities, industrial applications, and scald prevention in domestic water.
Application Point of Source
Maximum Operating Pressure 150 psi (1034 kPa)
Approval CSA Listed
Connection Size 1" NPT
Minimum Flow Rate 0.5 gpm
Body Material Teflon Coated Nickel Plated Brass
Capacity 4.3 Cv
O-ring Material EPDM Rubber
Operating Temperature Range 70 to 145°F (21 to 63°C)
Lead Free Yes
