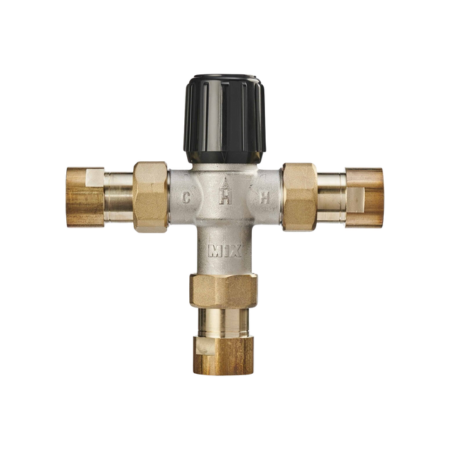

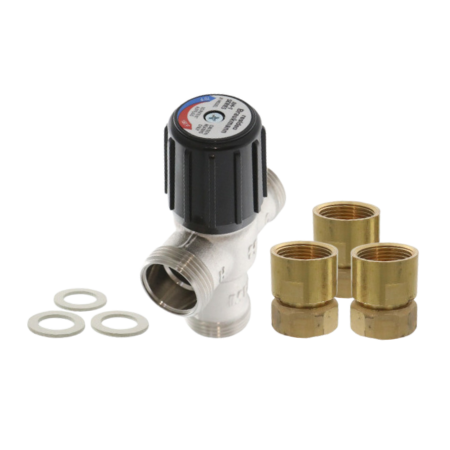

Resideo AM102R-UT-1 Mixing Valve 1” Union NPT – Heating Only

Resideo AM102R-UT-1 Mixing Valve 1” Union NPT – Heating Only
Images for general purposes only. Actual may be different than depicted.
Resideo AM102R-UT-1 Mixing Valve 1” Union NPT – Heating Only Resideo AM102R-UT-1 Mixing Valve 1” Union NPT

Resideo AM102R-UT-1 Mixing Valve 1” Union NPT – Heating Only

SKU: AM102R-UT-1
Rating:
Quantity Price Stock
8
Usually Ships 1 - 2 Weeks
$162.58     /ea
8

Buy in Bulk & Save

Quantity Price
4+ $154.45 /ea
0
$0.00
0
$0.00
0
AM102R-UT-1
The Resideo AM102R-UT-1 is a mixing valve with a 1” Union NPT connection that operates at 70 to 180°F temperature range.

Features:
  • Straight Through (Hot and Cold at the Same Level)
  • Teflon Coated Nickel Plated Brass Body and EPDM O-rings
  • Constant Water Temperature under Changing Operating Conditions
  • Proportional Valve (Simultaneous Control of Hot and Cold Water)
  • Lockable Handwheel for Accurate Temperature Control
  • Easy Maintenance and Element Replacement
The AM-1 Series is suitable for heating applications such as radiant and boiler systems (not intended for potable water usage).
Operating Temperature Range 70 to 180°F (21 to 82°C)
Maximum Operating Pressure 150 psi (1034 kPa)
Capacity 3.9 Cv
Approval CSA Certified
Connection Size 1" Union NPT
Minimum Flow Rate 0.5 gpm
Application Heating Only
Maximum Flow Rate 16 gpm
Body Material Teflon Coated Nickle-Plated Brass
O-Rings Material EPDM Rubber
