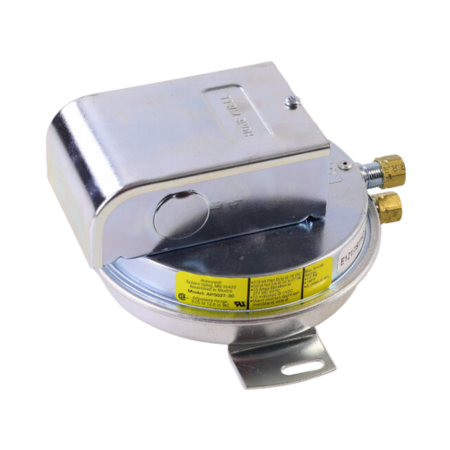

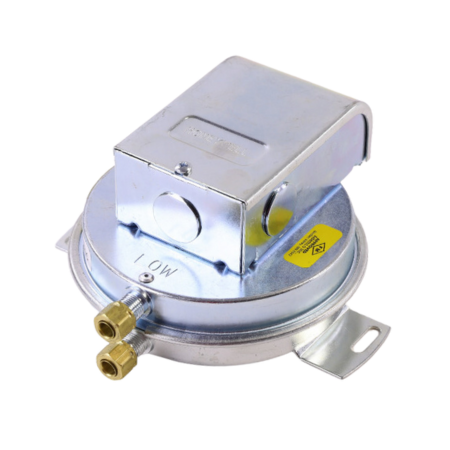

Resideo AP5027-30 Air Pressure Switch SPDT .05-12" W.C. 1/4" Compression Fittings

Resideo AP5027-30 Air Pressure Switch SPDT .05-12" W.C. 1/4" Compression Fittings
Images for general purposes only. Actual may be different than depicted.

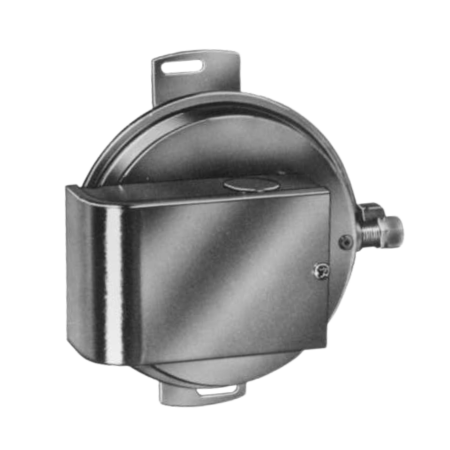

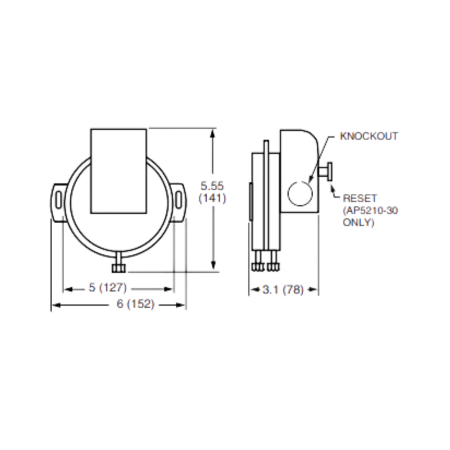

Resideo AP5027-30 Air Pressure Switch SPDT .05-12" W.C. 1/4" Compression Fittings Honeywell Resideo AP5027-30 SPDT Air Pressure Switch Honeywell Resideo AP5027-30 SPDT Air Pressure Switch .05-12" W.C. Honeywell Resideo AP5027-30 SPDT Air Pressure Switch Illustration Honeywell Resideo AP5027-30 SPDT Air Pressure Switch Dimension

Resideo AP5027-30 Air Pressure Switch SPDT .05-12" W.C. 1/4" Compression Fittings

SKU: AP5027-30
Rating: (1)
Quantity Price Stock
15
Usually Ships 1 - 2 Weeks
$206.38     /ea
15

Buy in Bulk & Save

Quantity Price
5+ $196.06 /ea
0
$0.00
0
$0.00
0
AP5027-30
The Honeywell Resideo AP5027-30 is an SPDT air pressure switch with an automatic reset.  This also has a .05 to 12" W.C. adjustable pressure range and 1/4" compression fittings.  UL and CSA Listed, FM Approved.

The air pressure switch is encased in a metal box with a cover that senses positive, negative, or differential air pressure and prevents overheating to protect the system from potential damage.

The AP5027-30 fits commercial and industrial HVAC systems, pneumatic controls, and process monitoring systems.  It is mounted with a diaphragm vertical and pressure connector down.
Electrical Ratings 278 VA @ 24 VAC; 300 VA @ 120 to 277 VAC
Electrical Switch SPDT
Adjustable Pressure Range .05 to 12" W.C. (0.012 to 2.98 kPa)
Diameter 5" (127mm)
Maximum Operating Pressure 1/2 psi
Approvals UL and CSA Listed, FM Approved
Ambient Temperature Range -40 to 190°F (-40 to 88°C)
Electrical Connections #6-32 Screw Terminal with Cup Washers
Pilot Duty Ratings 15A Resistive to 277 VAC; 10mA @ 5VDC; Gold Flash Contacts
Connection Size 1/4" Compression Fittings
