Resideo AT150B1260 Transformer 120V Primary 24V Secondary 50 VA

Name: Resideo AT150B1260 Transformer 120V Primary 24V Secondary 50 VA
Brand: Honeywell Resideo
SKU: AT150B1260/B
Price: 36.33 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Resideo AT150B1260 Transformer 120V Primary 24V Secondary 50 VA

SKU: AT150B1260/B

Tariff HS Code: 9801.00.10

Brand:

Rating:

Quantity	Price	Stock
21 Usually Ships 1 - 2 Weeks	$36.33 /ea	21

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

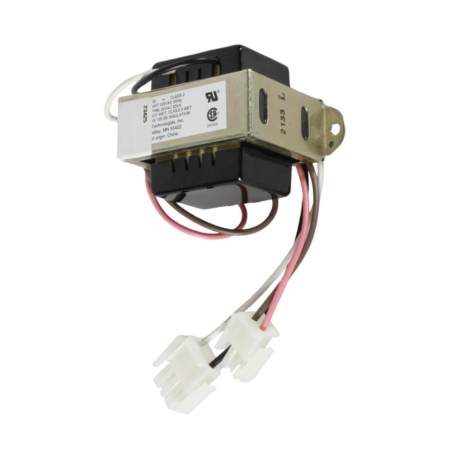

The Resideo AT150B1260 is a transformer with 120V primary voltage at 60 Hz and 24V secondary at 50 VA power ratings. UL and CSA Listed.

The transformer features black-white 9" lead wires for the primary electrical connection and pink-brown 18" lead wires for the secondary.

The AT150B1260 is suitable for use with S9360A, S9361A, S9380A, and S9381A integrated boiler controllers.

Primary Electrical Connection	9" Leadwires (Black and White)
Electrical Output	50 VA
Approvals	UL and CSA Listed
Frequency	60 Hz
Secondary Voltage	24V
Primary Voltage	120V
Mounting	Foot-Mounted
Operating Temperature Range	-29 to 41°C (-20 to 105°F)
Secondary Electrical Connection	18" Leadwires (Pink and Brown)
Insulation Class	Class B
