Resideo DB7110U1000 Universal Defrost Control Board for Single Stage Heat Pump

Name: Resideo DB7110U1000 Universal Defrost Control Board for Single Stage Heat Pump
Brand: Honeywell Resideo
SKU: DB7110U1000
Price: 151.10 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Resideo DB7110U1000 Universal Defrost Control Board for Single Stage Heat Pump

SKU: DB7110U1000

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1 - 2 Weeks	$151.10 /ea	1

Add to Cart

Add to Wishlist

The DB7110U1000 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Honeywell ST74A1053 Low Voltage Adjustable Time / Temperature Defrost Controller	ST74A1053 Brand Honeywell

Add to Cart

Add to Wishlist

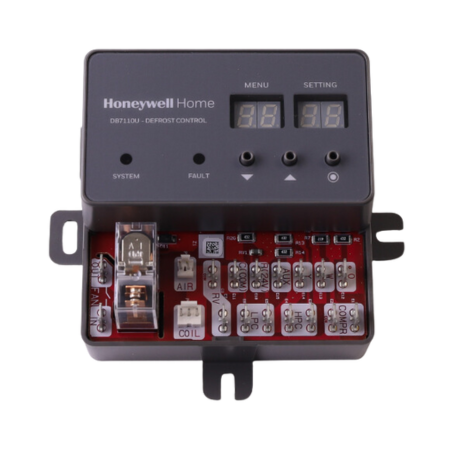

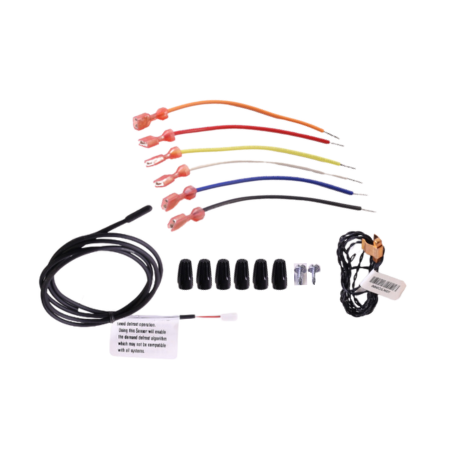

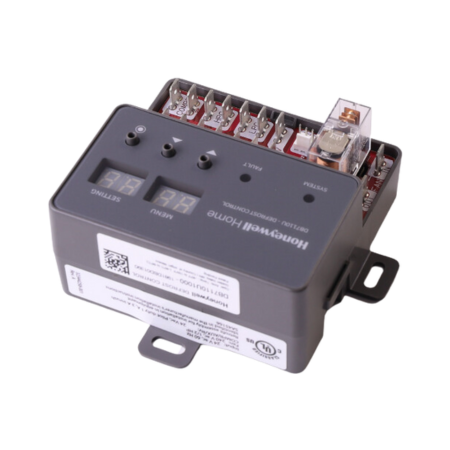

The Resideo DB7110U1000 is a universal defrost board controller. It includes wire nuts, wire leads, an air temperature sensor with 2 pin connector, a coil temperature sensor with 3 pin connector, and mounting screws. UL Listed.

Features:

System Status and Fault Indication
Demand and Timed Defrost Modes
Fault History for Easy Troubleshooting
Small Footprint for Better Fit and Easier Installation
Dual LED Display for Easy Setup and Configuration
Selectable Reversing Delay to Limit Noise

The DB7110U is compatible for use with single-stage on/off heat pumps to control the indoor auxiliary heat source used during defrost operations and often as a second stage of heat.

Operating Temperature Range	-40 to 150°F
Humidity Limits	less than 95% RH (non-condensing)
Amperage	1A
Maximum Input Current	200mA
Voltage	24 VAC
Number of Stage	Single-Stage On/Off
Frequency	60 Hz
Electrical Connection	1/4" Quick Connect
Application	Single-Stage Heat Pump
Mounting	Any Orientation

Download Product Information:

Honeywell DB7110U Universal Heat Pump Defrost Controller Installation Guide
