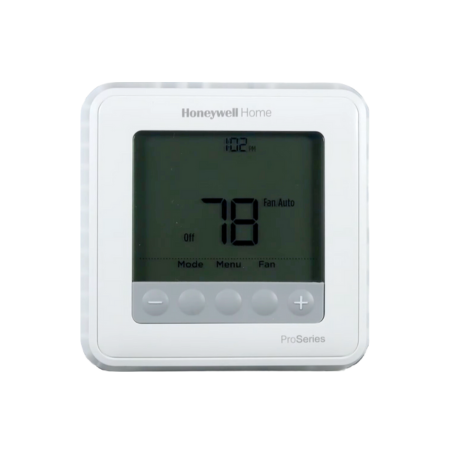

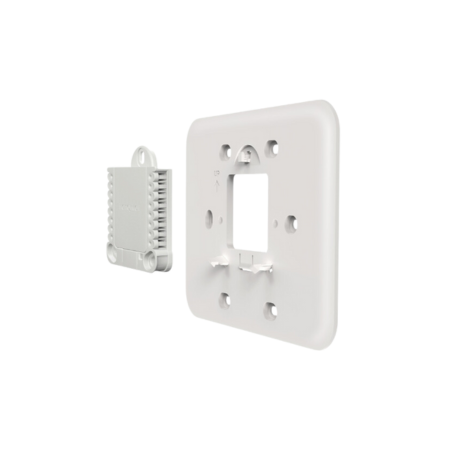

The Honeywell Resideo TH6320U2008-REIDY is a T6 Pro programmable thermostat assembly that includes a UWP mounting system, 2 AA batteries, an installation (J-box) adapter, a cover plate, screws, and anchors. It has 4-1/16” H x 4-1/16” W x 1-3/32” D (103.6 mm x 103.6 mm x 28 mm) dimension.
The thermostat is battery-powered or hardwired operating at 24V. This device features easy-to-use buttons for menu, mode, and fan selection and an LCD screen that shows time, temperature, schedule information, and system status.
The TH6320U2008-REIDY is suitable for a 3 Heat/2 Cool heat pump system. This component displays “Cool On” when the temperature is between 50 to 99°F (10 to 37°C) and displays “Heat On” when set between 40 to 90°F (4 to 32°C).
| Programmability | Programmable |
|---|---|
| Mounting | UWP Mounting System |
| Power Rating | 24V; 20 to 30 VAC |
| Power Method | Battery-Powered or Hardwired |
| Stages | 3Heat/2Cool |
| Setting Temperature Range | Heat: 40 to 90°F (4 to 32°C); Cool: 50 to 99°F (10 to 37°C) |
| Changeover | Auto or Manual |
| Operating Humidity Range | 5 to 90% RH, Non-Condensing |
| Accuracy | ±1 F (± 0.5 C) |
| Display Type | LCD Screen |
