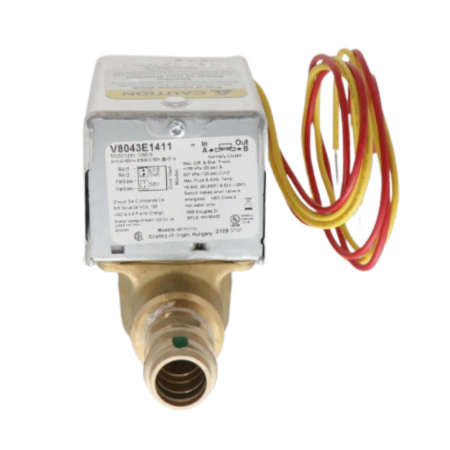

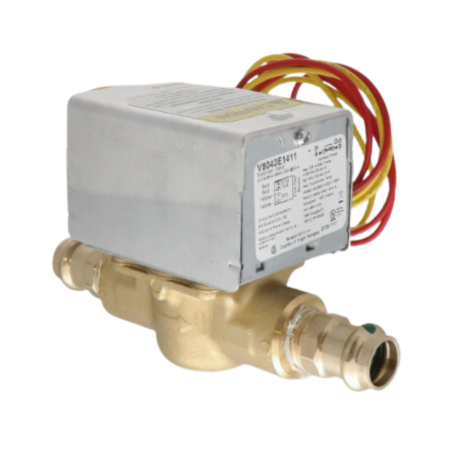

The Honeywell Resideo V8043E1411 is a normally closed zone valve assembly with a motorized actuator and 18” lead wire. This operates at 24V and 50/60 Hz power ratings.
The zone valve provides two-position, straight-through control of hot/cold water flow up to 300 psi pressure. It has a nominal diameter of DN15 with a 1/2" pro press connection. The valve has a forged brass body, stainless steel drive shaft stem, Buna-N rubber ball plug, and an EPDM rubber o-ring that prevents water leakage. Also, it features a Quick-Fit button for easy snap-on/off connection, a manual opener for valve operation during power loss, and an auxiliary end switch to permit sequencing of auxiliary units.
The V8043A1313 is suitable for radiators, baseboards, convectors, fan coils, and units requiring quiet compact water valves. Mounting the valve can be in any position as long as on a vertical line.
| Maximum System Pressure Rating | 300 psi (2000 kPa) |
|---|---|
| Approvals | UL and CSA Listed |
| Maximum Close-Off Rating | 20 psi |
| Body Pattern | Straight-Through, 2-Way |
| Operating Humidity Range | 5 to 95% Relative Humidity, Non-Condensing |
| Fluid Temperature Range | 40 to 200°F (4 to 93°C) |
| Ambient Temperature | 125°F (52°C) |
| Electrical Rating | 24V, 50/60 Hz |
| Electrical Connection | 18" Lead Wire |
| Flow Capacity Rating | 3 Cv |
