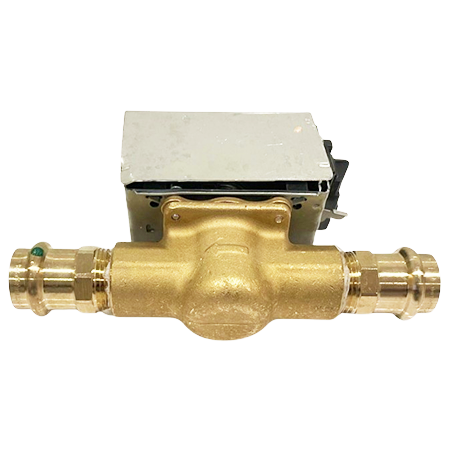

Resideo V8043F1512 Zone Valve 3/4" Press 24V Normally Closed Aux Terminal Block

Resideo V8043F1512 Zone Valve 3/4" Press 24V Normally Closed Aux Terminal Block
Images for general purposes only. Actual may be different than depicted.

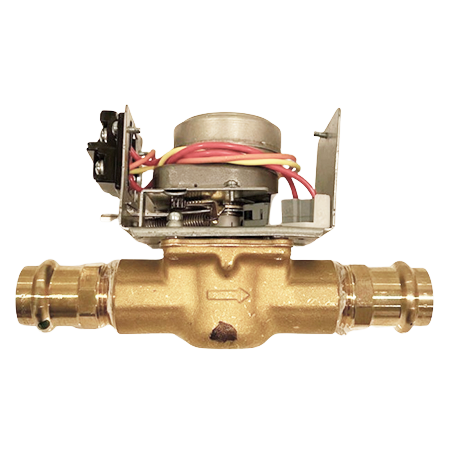

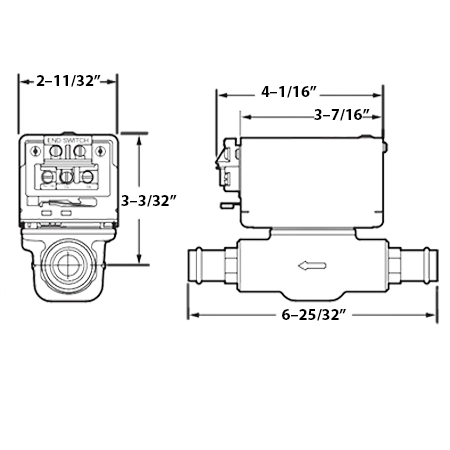

Resideo V8043F1512 Zone Valve 3/4" Press 24V Normally Closed Aux Terminal Block Resideo V8043F1512 Zone Valve Normally Closed with Terminal Block Resideo V8043F1512 Zone Valve Dimensions

Resideo V8043F1512 Zone Valve 3/4" Press 24V Normally Closed Aux Terminal Block

SKU: V8043F1512
Rating:
Quantity Price Stock
4
Usually Ships 1 - 2 Weeks
$183.05     /ea
4

Buy in Bulk & Save

Quantity Price
5+ $173.90 /ea
0
$0.00
0
$0.00
0
V8043F1512
The Honeywell Resideo V8043F1512 is a zone valve that has a 3/4" (DN20) Pro Press pipe connection size with terminal block connections and end switch.  It operates at 24V, 3 Cv, and 40 to 200°F (4 to 93°C) fluid temperature.  UL-recognized and CSA-certified.

The two-way straight-through zone valve is suitable for baseboard radiation, connectors, and fan-coil unit applications.  The unit is designed to control the flow of hot and cold water supply through the actuator that opens or close the valve.

The V8043F1512 provides easy installation and can be mounted in any position on a vertical pipe line.  The powerhead and actuator motor can also be replaced without breaking the draining system.
Voltage 24V
Connection Size 3/4" (DN20) Pro Press
Flow 3 Cv
Frequency 50/60 Hz
Maximum Ambient Temperature 125°F (52°C)
Current Draw 0.32A
Fluid Temperature 40°F to 200♠F
Body Pattern Two-way, Straight-through
Approvals UL-recognized and CSA-certified
De-energized Position Normally Closed
