Resideo V8043F1513 Zone Valve 1" Press 24V Normally Close Aux Terminal Block

Name: Resideo V8043F1513 Zone Valve 1" Press 24V Normally Close Aux Terminal Block
Brand: Honeywell Resideo
SKU: V8043F1513
Price: 207.40 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Resideo V8043F1513 Zone Valve 1" Press 24V Normally Close Aux Terminal Block

SKU: V8043F1513

Brand:

Rating:

Quantity	Price	Stock
3 Usually Ships 1 - 2 Weeks	$207.40 /ea	3

Buy in Bulk & Save

Quantity	Price
5+	$197.03 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

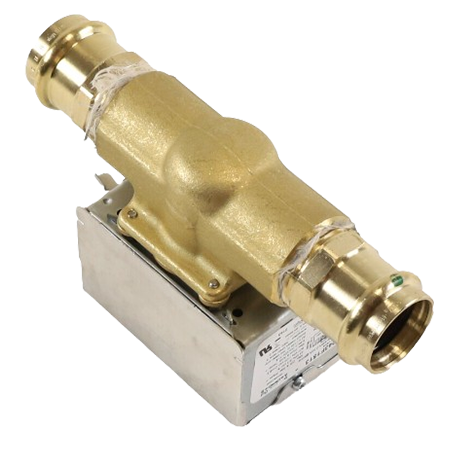

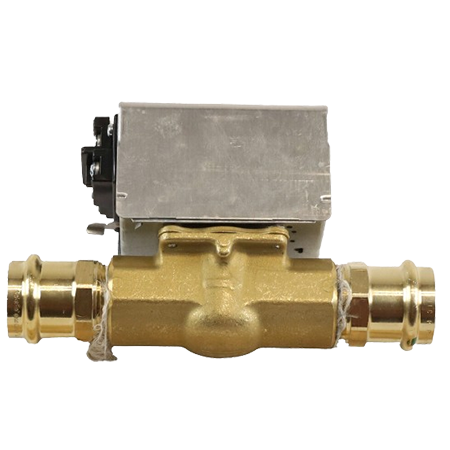

The Honeywell Resideo V8043F1513 is a zone valve that consists of an actuator motor and valve assembly with a 1" (DN25) pro press pipe connection size. It has a terminal block connection with an end switch allowing easy operation. UL-listed and CSA-certified.

The zone valve is suitable for fan coils and units that need silent & compact water valves. The unit is designed to control the flow of hot or cold water with a two-way, straight-through body construction.

The V8043F1513 provides quick installation and can be mounted in any position on the pipeline.

Voltage	24V
Frequency	50/60 Hz
Pipe Size	1" (DN25) Pro Press
Maximum Differential Pressure	20 psi (138 kPa)
Capacity	8.5 Cv
Body Material	Brass
Static Pressure Rating	120 psi (827 kPa)
De-energized Position	Normally Closed
Actuation	Two-position
Approvals	UL-listed and CSA-certified

Download Product Information:

Resideo Press Hydronic Solutions Catalog

Resideo V8043F1513 Zone Valve Installation Instructions
