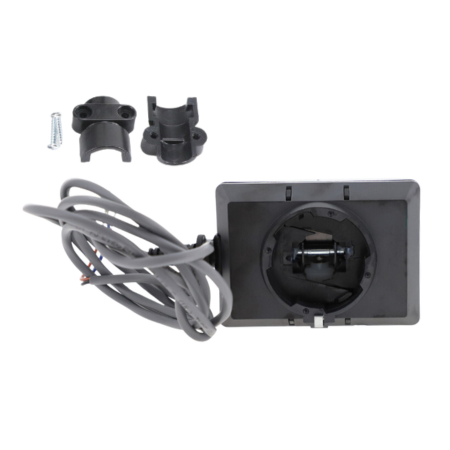

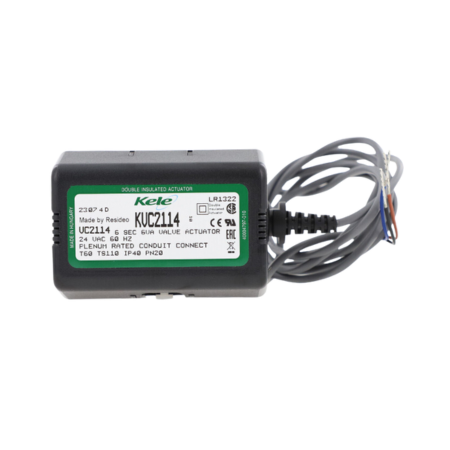

The Resideo VC2114ZZ31 is a 2-position (open/close) low-volt actuator that operates with 24 VAC and 60 Hz. UL and CSA Listed.
Features:
The VC2 is suitable for VC Series valves to control central heating/cooling systems, fan coil systems, radiators, and convectors.
| Approvals | UL and CSA Listed |
|---|---|
| Frequency | 60 Hz |
| Mounting | Direct Coupled |
| Materials | Plastic Housing |
| Compatible Series | VC Series |
| Application | HVAC System |
| Voltage | 24 VAC |
| Operating Humidity Range | 5 to 95% RH, non-condensing |
| Ambient Temperature Range | 0 to 65°C (32 to 150°F) |
| Maximum Differential Pressure | 60 psi (400 kPa) |
