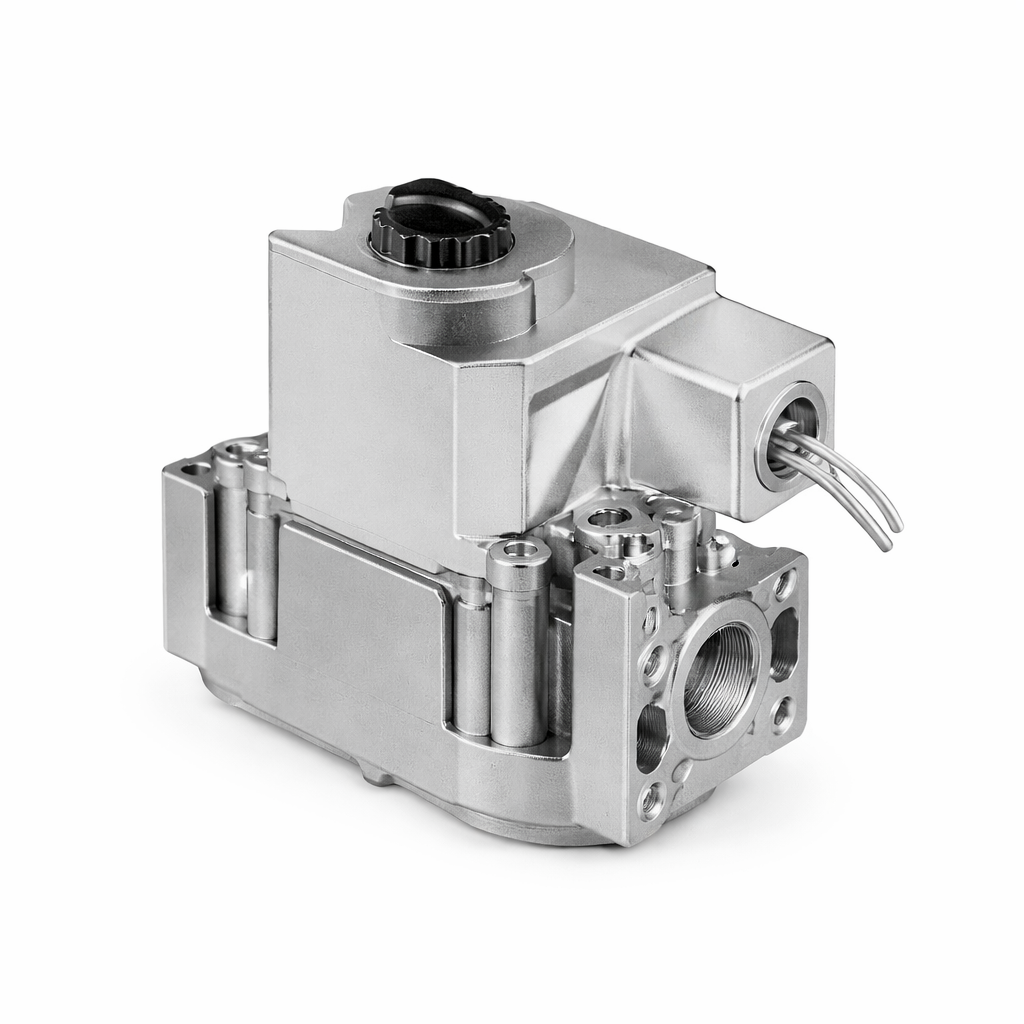

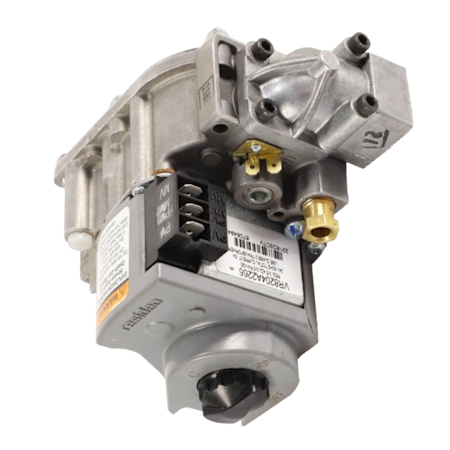

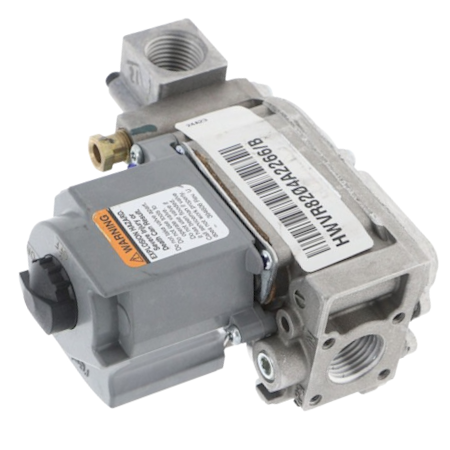

The Resideo VR8204A2266/B is a 24V, 60Hz intermittent pilot gas valve designed for controlling gas flow in heating appliances. It features a 1/2" NPT inlet and outlet, with a pressure regulator factory-set at 3.5" WC for natural gas applications. This valve includes safety shutoff, a manual valve, two automatic operators, and a pilot adjustment screw, ensuring reliable operation in gas-fired systems.
Key Features:
Capacity: Rated at 150 cubic feet per hour (cfh) at a 1-inch water column (wc) pressure drop, suitable for various heating applications.
Versatility: Compatible with 24 Vac heating appliances that burn natural gas.
Design: Compact size with a straight-through body pattern; includes inlet and outlet screens and pilot filter.
Installation Flexibility: May be installed at any angle between 0 and 90 degrees from the upright position, including vertically.
The VR8204A2266/B is UL-recognized and CSA-certified, meeting industry safety standards for gas control valves.
| Electrical Connections | 1/4" male quick-connects |
|---|---|
| Current Draw | 0.5 A |
| Body Pattern | Straight-through with 1 /2 in. inlet and outlet |
| Pressure Regulator | Standard |
| Mounting | 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically. |
| Operating Temperature Range | -18 to +79°C (0 to 175°F) |
| Pilot Gas Outlet | Compression fitting for 1/4" OD tubing |
| Pressure Ratings | 1/2 psi (3.5 kPa) |
| Natural Gas Minimum Capacity | 20,000 Btuh (5860W) |
| Frequency | 60 Hz |
