Reznor 87434 Ventor Motor 115V 60 Hz

Name: Reznor 87434 Ventor Motor 115V 60 Hz
Brand: Reznor
SKU: 87434
Price: 380.57 USD
Availability: InStock
Rating: 5 (2 reviews)

Images for general purposes only. Actual may be different than depicted.

Reznor 87434 Ventor Motor 115V 60 Hz

SKU: 87434

UNSPSC: 26101400 Tariff HS Code: 8501104040

Brand:

Rating: (2)

Quantity	Price	Stock
22 Usually Ships 2 - 4 Weeks	$380.57 /ea	22

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

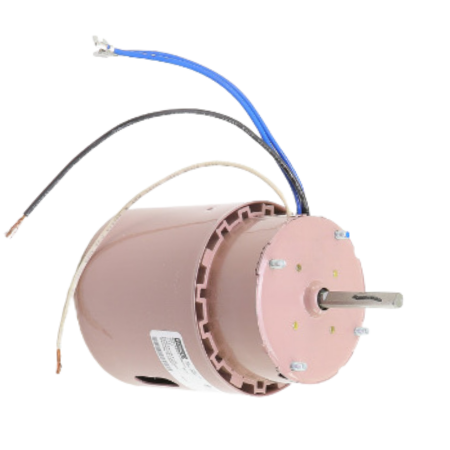

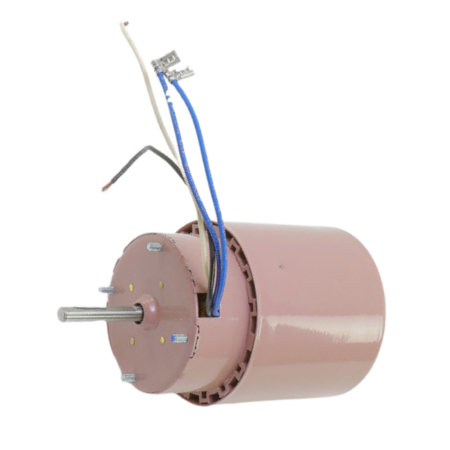

The Reznor 87434 is a ventor motor designed to operate at 1.4A, 115V, and 60 Hz electrical ratings. It is CSA-certified for safety and reliability.

This motor features a flat shaft measuring 1-3/4” in length and 1/4" in diameter and runs at 3000 RPM in a clockwise direction with single-speed operation.

It includes Class B insulation, thermal protection, a permanently lubricated design, an air-over-duty cycle, and a sleeve bearing for smooth operation.

The 87434 directly replaces Reznor 17587434 and Fasco 71621775 ventor motors. It is compatible with blower-type and fan-type gas-fired unit heaters.

Voltage	115V
Frequency	60 Hz
Amperage	1.4A
Insulation Class	Class B
Motor Protection	Thermally Protected
Approval	CSA-Certified
Rotation Speed	3000 RPM
Rotation Direction	Clockwise
Duty Cycle	Air Over
Capacitor	4 MFD/370VAC
