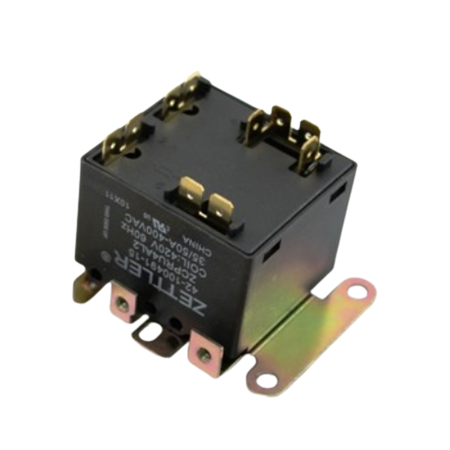

Rheem 42-100491-15 Start Relay

Name: Rheem 42-100491-15 Start Relay
Brand: Rheem
SKU: 42-100491-15
Price: 29.44 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Rheem 42-100491-15 Start Relay

SKU: 42-100491-15

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 3 Weeks Usually Ships 2 - 3 Weeks	$29.44 /ea	Usually Ships 2 - 3 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 42-100491-15 is a start relay that has a power rating of 60 Hz, 240-260V hot pickup, 218-243V cold pickup, 60-121V dropout, and 420V maximum continuous coil voltage. UL-listed.

The start relay is mainly used for start capacitors which connect and provide higher power to start the system and disconnects the electrical circuit once the system has reached its proper voltage.

The 42-100491-15 replaces the following part numbers:

42-18282-29
42-18528-13
42-18282-15
42-18282-10
42-18528-08
42-18528-09
42-18528-15
42-18528-14
42-18282-16
42-18282-24
42-18282-02
42-25105-03
42-18282-18
42-18528-03

Frequency	60 Hz
Maximum Continuous Voltage	420V
Dropout Voltage	60 - 121V
Cold Pickup Voltage	218 - 243V
Hot Pickup Voltage	240 - 260V

Download Product Information:

Rheem 42-100491-15 Start Relay Catalog

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

I'm looking for a start relay for a Rheem RPQL-030JEZ, #42-100491-09 but you don't have it listed. Has the part number been changed?

Asked on July 20, 2017 by Alan from Havana, FL

1 Answers

Have an answer? Click Here

42-25105-01 is the direct replacement for 42-100491-09. The following is a direct link to the 42-25105-01 Rheem Start Relay. There are currently 6 available from stock.

Replied on July 20, 2017 by Ron from Industrial Stores
