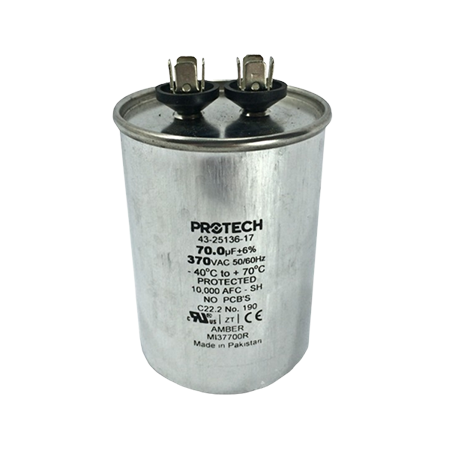

The 43-25136-17 is a single-round run capacitor that has a power rating of 370V and 50/60 Hz with 70 μF capacitance. The capacitor has a ±6% tolerance rating and a 10,000A AFC rating. UL-listed and CE-marked.
The internally protected capacitor is suitable for air conditioner applications. The unit is used to store electrical energy and continuously provide a higher current during running operation for air conditioners that needs larger capacitance to maximize power and efficiency.
The 43-25136-17 replaces part numbers 43-101666-29, 43-100510-29, 43-21298-29, and 8552-5529.
Check out the compatible models:
| Voltage | 370V |
|---|---|
| Capactiance | 70μF |
| Tolerance Rating | ±6% |
| AFC Rating | 10,000A |
| Frequency | 50/60 Hz |
| Approvals | UL-listed, CE-marked |
| Maximum Temperature | -40°C to 70°C |
