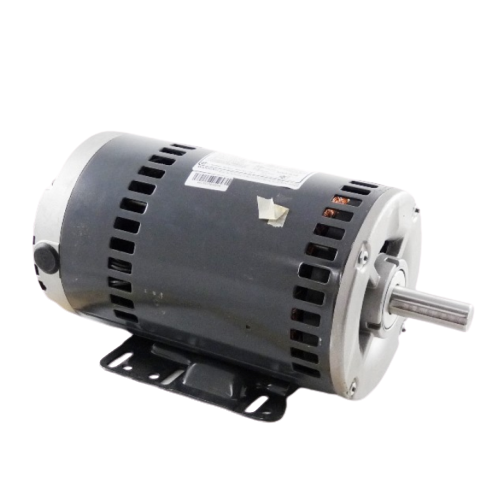

Rheem 51-42537-04 2 Hp 208-460 MultiV 1725RPM Motor

Name: Rheem 51-42537-04 2 Hp 208-460 MultiV 1725RPM Motor
Brand: Rheem
SKU: 51-42537-04
Price: 758.21 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Rheem 51-42537-04 2 Hp 208-460 MultiV 1725RPM Motor

SKU: 51-42537-04

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 4-9 Days Usually Ships 4-9 Days	$758.21 /ea	Usually Ships 4-9 Days

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Rheem-Ruud 51-42537-04 is a MultiV Blower Motor consisting of 56HZ Nema Frame Size, ball bearing, and a Shaft with 7/8 x 2 1/4 inch dimension.

The motor runs in 1 speed, Three-Phase, and has 2 Horsepower. It operates in a reversible rotation direction at a speed of 1725 RPM. Must be installed or mounted in a platform.

Rheem 51-42537-04 Amperage Rating
FLA		LRA
230 Voltage	460 Voltage	230 Voltage	460 Voltage
5.80 Amp	2.90 Amp	56.0 Amp	28.40 Amp

Shaft Size	7/8" x 2 1/4"
Voltage	208-230/460 VAC
Horsepower	2 Hp
Rotation Speed	1725 RPM
Phase	Three
Speed	1 Speed
Amperage Rating	5.8-2.9 Amps
Frequency	50/60 Hz
Mounting	Platform
Motor Type	Belt Drive
