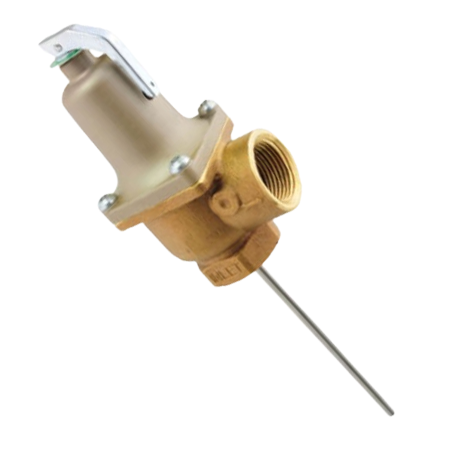

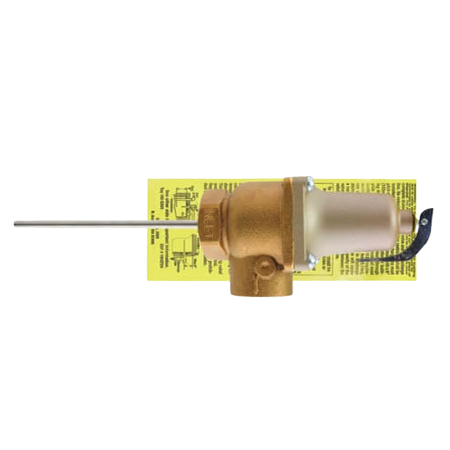

The AP12035-1 is a temperature & pressure relief valve that has a 210°F maximum temperature setting, 150 psi maximum pressure, and 670,000 BTU/HR capacity. It features 1-inch NPT inlet and outlet thread sizes for seamless integration. This ASME-rated and CSA-listed valve includes a unique thermostat with a special thermo-bonded coating, a proven and accurate thermostat, and a durable stainless steel spring for reliable performance.
The temperature and pressure relief valve is a safety device for water heaters, designed to prevent or relieve overheating and excessive pressure. It protects tanks from potential rupture or explosion by venting pressure when it exceeds 150 psi or when the water temperature reaches 210°F.
| Outlet Connection Size | 1" NPT |
|---|---|
| Inlet Connection Size | 1" NPT |
| Capacity | 670,000 BTU/HR |
| Maximum Temperature Setting | 210°F (99°C) |
| Maximum Pressure | 150 psi |
| Approvals | ASME and CSA listed |
| Spring Material | Stainless Steel |
| Body Length | 5-3/4" |
| Sensor Length | 5-5/8" |
Download Product Information:
Rheem AP12035-1 Temperature and Pressure Relief Valve Technical Datasheet
